Attach Drop Nozzles Directly to Nozzle Bodies

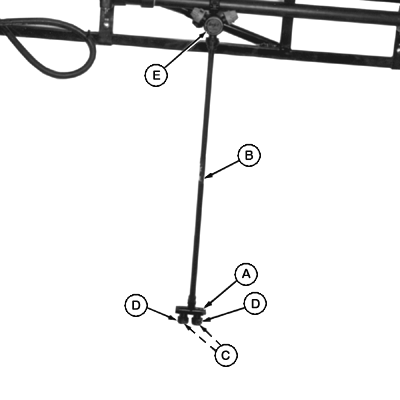

1. Install double nozzle body (A) to threaded hose end of drop nozzle (B).

2. Insert spray tips or blank disks (C) into threaded nozzle caps (D) and assemble caps to double body.

3. Attach drop nozzle with Viton gasket to nozzle body (E).


A-Double Nozzle Body
B-Drop Nozzle
C-Blank Disks
D-Threaded Caps
E-Nozzle Body
