Adjusting Boom Leveling Cylinders

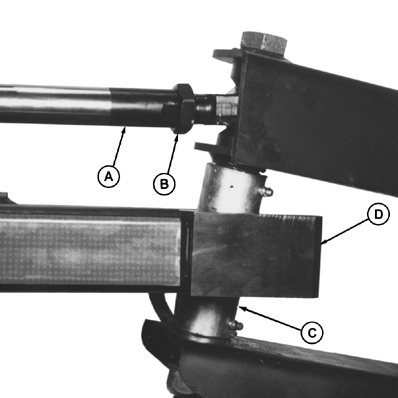

1. Extend cylinder (A).

2. Loosen jam nut (B) and adjust cylinder until roller assembly (C) is firmly seated against inside portion of stop (D). Rotate rod end clockwise 1/2 turn to "shorten" cylinder. Tighten jam nut.


A-Cylinder
B-Jam Nut
C-Roller Assembly
D-Stop

N42184JG

AG,OUO1011,902 -19-27JUL99-1/1
