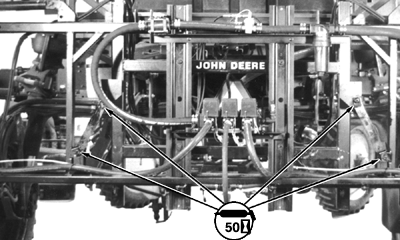

Lubricate Boom-50 HOURS
N51109

NXH8,64037,J4 -19-15JUL98-1/4

IMPORTANT: Lubrication of the boom should be done at (50 Hours) to ensure maximum boom performance and life.

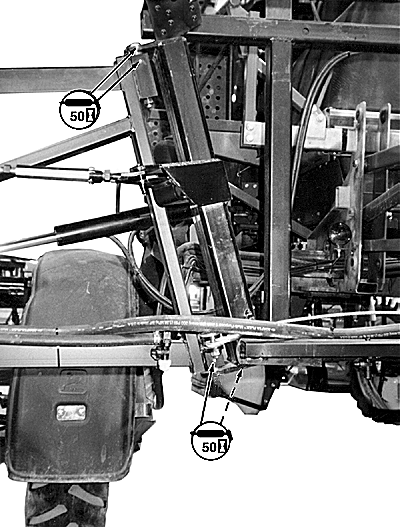

Lubricate boom hinges. (Left-Hand side shown.)

N55224

NXH8,64037,J4 -19-15JUL98-2/4

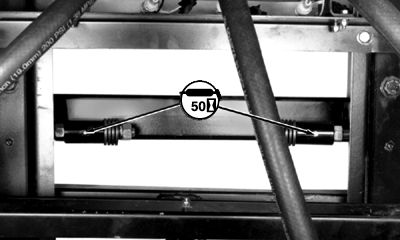

Lubricate cable adjusters.

N51111

Cable Adjusters

NXH8,64037,J4 -19-15JUL98-3/4

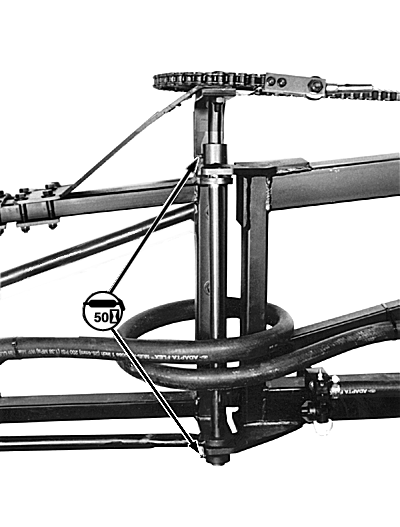

Lubricate sprocket shaft.

N55081

Sprocket Shaft (Top and Bottom)

NXH8,64037,J4 -19-15JUL98-4/4
