Lubricate Center Frame Skid Plates-Daily

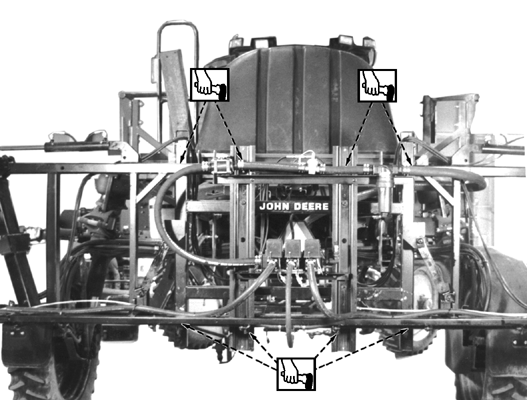

N42190AL

Apply grease to all center frame and hinge skid plates and their contact surfaces. Raise and lower center frame and extend/retract level cylinders to evenly distribute grease.

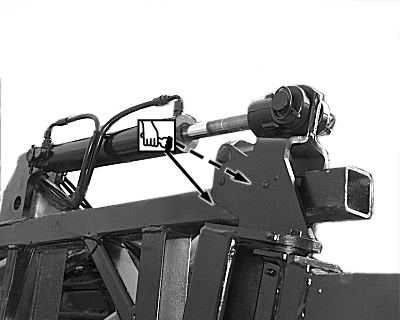

N55222

Right-Hand Side Shown

NXH8,64037,J6 -19-29APR98-1/1
