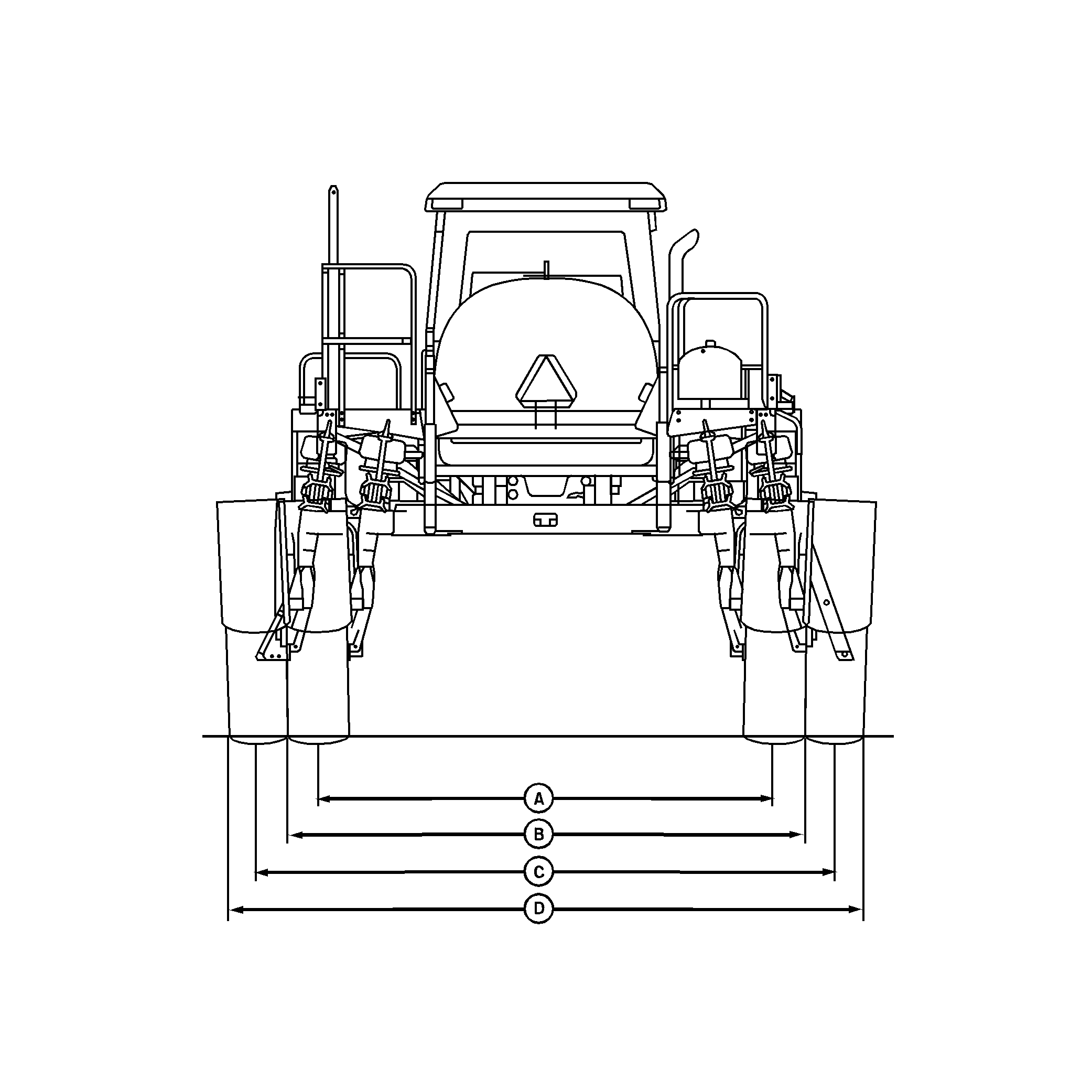

A-Narrowest Tread Setting, 3048 mm (120 in.)
B-Widest Point on Wheels at Narrow Setting (planetary hub)3607 mm (142.0 in.)1
C-Widest Tread Setting, 3861 mm (152 in.)
D-Widest Point on Wheels at Widest Setting (planetary hub)4420 mm (174.0 in.)1
1Equipped with standard tires.
