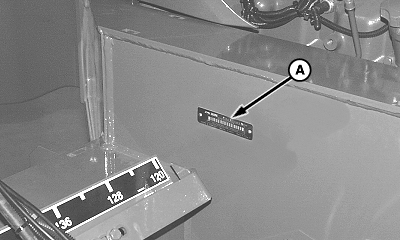

Identification NumbersCopy these pages to record component serial numbers. This will help when acquiring service parts. The product identification number (A) is on left-hand side of frame. Product Identification Number _________________________
|
|
OUO1073,0001D62 -19-05AUG04-1/5 |
|

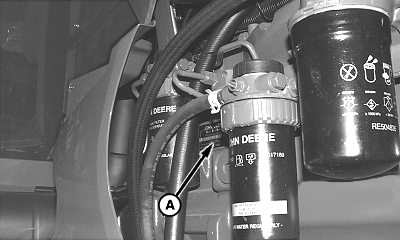

The engine serial number (A) is on the right-hand side of engine block behind fuel filter. Engine Serial Number _______________________________
|
|
OUO1073,0001D62 -19-05AUG04-2/5 |
|

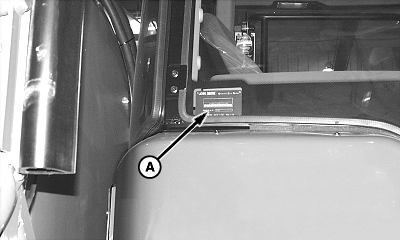

The cab serial number (A) is located at lower rear corner of right-hand cab side glass. Cab Serial Number _________________________________
|
|
OUO1073,0001D62 -19-05AUG04-3/5 |
|
The SPRAYSTAR ™ monitor serial number is located on the back of the monitor. Monitor Serial Number________________________________ |
|
|
SPRAYSTAR is a trademark of Deere & Company | OUO1073,0001D62 -19-05AUG04-4/5 |
|
The SPRAYSTAR monitor controller serial number is located on the back of the controller. Controller Serial Number_______________________________ |
|
OUO1073,0001D62 -19-05AUG04-5/5 |
