Service Engine Air Intake and Pre-Cleaner-750 Hours

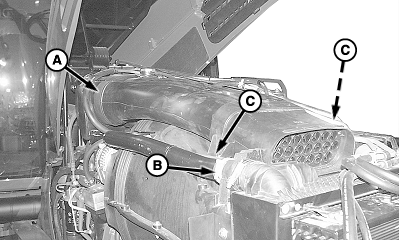

2. Slide band (A) toward front of machine.

3. Loosen hose clamp at ejector hose (B).

4. Remove two cap screws (C).

5. Remove pre-cleaner from tractor by rotating and sliding out of intake canister inlet.

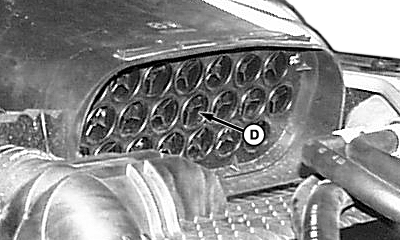

6. Inspect ejector hose and pre-cleaner for dirt and trash. Clean aspirator tubes (D) with compressed air or wash tubes in warm water using a mild detergent. Rinse aspirator tubes in clean water. Dry before installing.

7. Install pre-cleaner in reverse order of disassembly.

8. Tighten all air intake system joints.

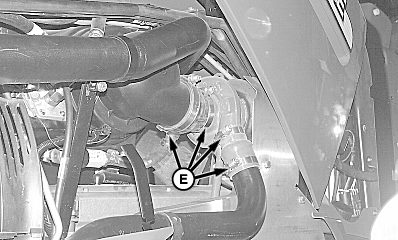

9. Tighten hose clamps (E) at turbocharger.

A-Hose Band
B-Ejector Hose
C-Cap Screws
D-Aspirator Tubes
E-Hose Clamps

OUO6043,00017EA -19-23SEP04-1/1
