Cleaning Cooling Package

1. Stop engine and remove key.

2. Raise hood.

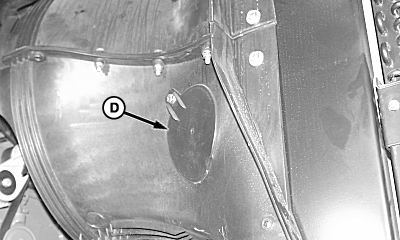

3. Remove cap screw (A), cap screw and nut (B) and lift side shield (C) off of alignment studs.

4. Remove cap screw and cleaning access cover (D).

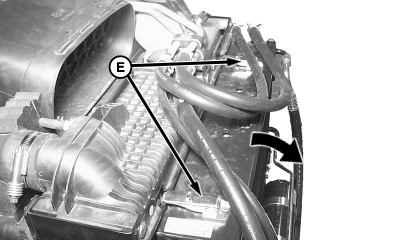

5. Release latches (E) and tilt cooler/condenser forward away from radiator.

causym CAUTION: Reduce compressed air to 210 kPa (2 bar) (30 psi) or less when using for cleaning purposes. Clear area of bystanders, guard against flying debris, and wear personnel protection equipment, including eye protection. A filter type respirator is also advised to avoid inhalation of harmful particles.

6. Use compressed air or water to clean all cooling package components. Straighten any bent fins.

7. Push cooler/condenser toward radiator and engage latches.


A-Cap Screw
B-Cap Screw and Nut
C-Side Shield
D-Cleaning Access Cover
E-Latches

N67682
N67741
N67742

OUO6043,00017EB -19-11OCT04-1/2

IMPORTANT: Air flow inside shroud compartment will not circulate properly if cover is not installed correctly. Make sure to install cover with tab inside slot in shroud.

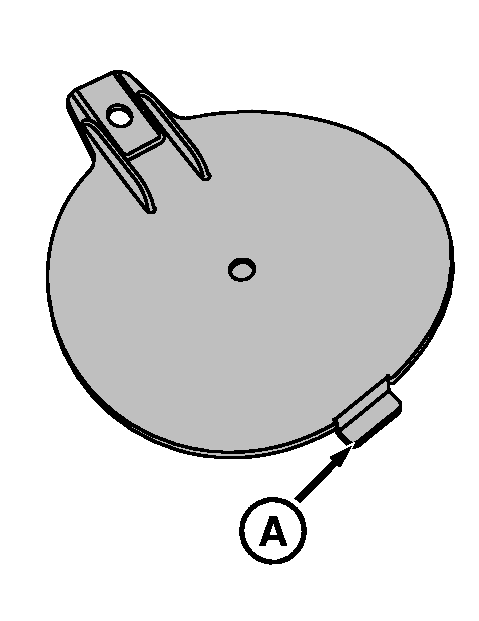

8. Install cover with tab (A) INSIDE slot in shroud. Fasten with cap screw.

9. Install side shield and lower hood.


A-Tab
