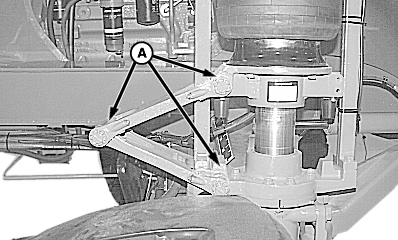

Check Suspension Scissors-After First Ten Hours1. Check for looseness at each of three scissor joints (A).2. If necessary, only tighten castle nuts enough to remove any gap at each of the joints. Reinstall cotter pin by backing off nut to nearest hole.
|
|
OUO6043,00017EE -19-21SEP04-1/1 |
