Change Engine Oil and Filter-After First 100 Hours

1. Run engine to warm oil. Stop engine. Remove crankcase drain plug (A). Replace plug after oil drains out.

2. Remove filter (B) and clean filter mounting surface. Apply a thin film of oil to replacement filter and install. Hand-tighten filter element. Do not overtighten.

3. Fill crankcase with seasonal viscosity grade oil. (See Diesel Engine Oil in the Fuels And Lubricants section.) 1

Specification

Crankcase with Filter -Capacity 26 L (27.5 qt)

4. Start engine and check for leaks.

5. Stop engine. Check oil level.

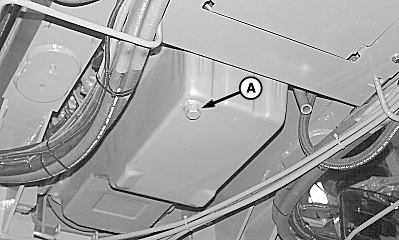

A-Crankcase Drain Plug

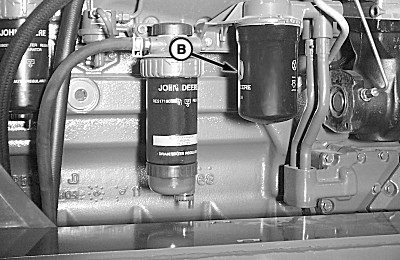

B-Filter Element

N67759
N67760

1If John Deere TORQ-GARD SUPREME PLUS-50 engine oil and a John Deere filter are used, the oil and filter service interval may be extended to 500 hours.

OUO6043,00017EF -19-28SEP04-1/1
