Lubricate Suspension Assemblies-Daily

Lubricate front and rear suspension assemblies with ONLY John Deere moly high temperature EP grease. Use three pumps of grease at each fitting (A).

IMPORTANT: Use of other greases in the suspension system is not recommended. Use of other greases can result in premature wear of the suspension components.

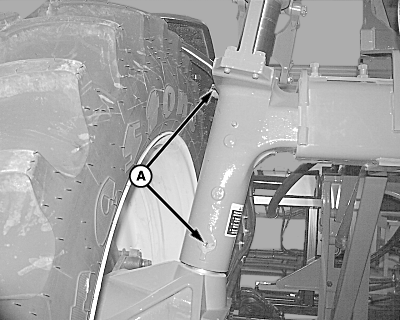

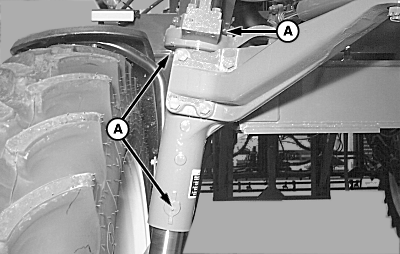

NOTE: Three grease fittings are on each front suspension assembly. Two grease fittings are on each rear suspension assembly.

A-Grease Fitting

OUO6043,00017F3 -19-22SEP04-1/1
