Clean Screens and Cooling Package-As Required

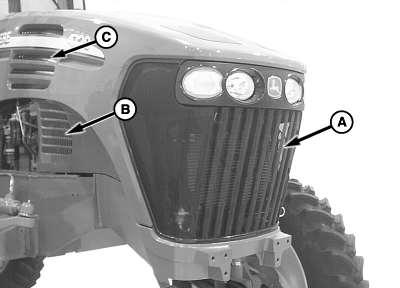

Stop engine and clean front grill screens (A), engine side shields louvers (B) and hood louvers (C) using a brush.

Clean air conditioning condenser/fuel cooler, hydraulic oil cooler, charge air cooler and radiator. (See Cleaning Cooling Package in Engine and Drivetrain section for procedure.)

A-Grill Screens
B-Engine Side Shield Louvers
C-Hood Louvers

OUO6043,00017F7 -19-22SEP04-1/1
