Lubricate Steering Cylinder Ball Joints and Rotating Steering Arms-100 Hours
IMPORTANT:
Use only John Deere HD Moly Grease or John Deere SD Polyurea Grease for lubricating suspension and steering components. Use of other greases in the suspension system is not recommended. Use of other greases can result in premature wear of the suspension components.
Lubricate steering cylinder ball joints (A) and rotating steering arms (B) using John Deere HD Moly Grease or John Deere SD Polyurea Grease every 100 hours.

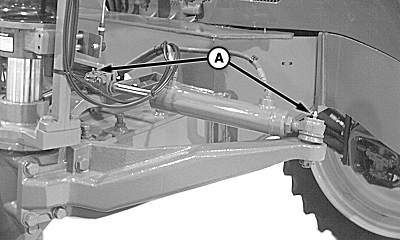

A-Steering Cylinder Ball Joints

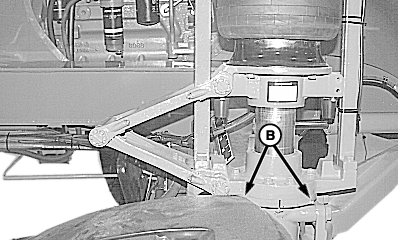

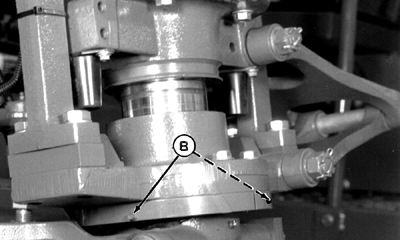

B-Rotating Steering Arms
|
