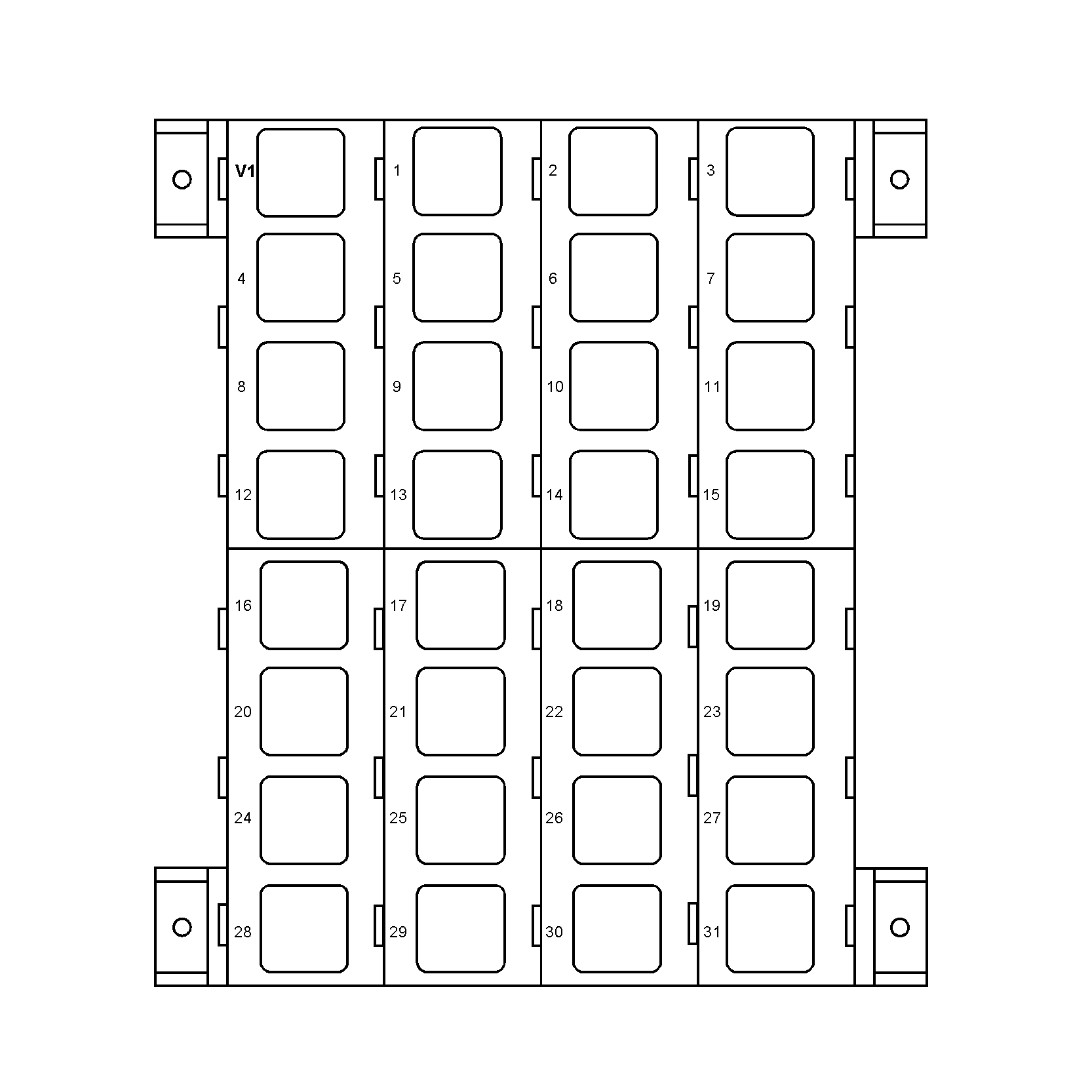

V1-Flash Lamp Diodes-Roof Lamp Control Diodes
1-Front Shift Relay
2-Load Sense Jamming Relay
3-Reverse Boost Relay
4-ELX Relay
5-Accessory Power Relay
6-Traction Control Relay
7-Roof Lights Relay
8-Wiper Relay
|
9-Wiper Latch Relay
10-Wiper Pulse Relay
11-Cab Blower Relay
12-Cab Blower Purge Relay
13-Cab Pressure Blower Relay
14-Left-Hand Boom Raise/Fold Relay
15-Left-Hand Boom Lower/Unfold Relay
|
16-Center Frame Raise Relay
17-Center Frame Lower/Unfold Relay
18-Right-Hand Boom Raise/Fold Relay
19-Right-Hand Boom Lower Relay
20-Park Brake Relay
21-Rear Shift Relay
22-Auxiliary Plug Relay
|
23-Horn Relay
24-Chassis Lights Relay
25-Auxiliary Lights Relay
26-Dim Lights Relay
27-Bright Lights Relay
28-Right-Hand Turn Relay
29-Left-Hand Turn Relay
30-Right-Hand Taillight Relay
31-Left-Hand Taillight Relay
|
