Inspect Hydro Isolators-Annually

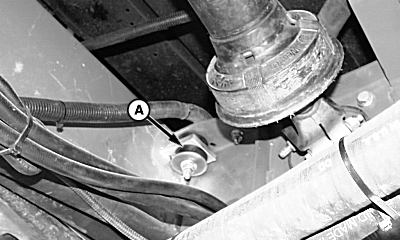

Inspect three hydro isolators (A) for loose, damaged, or missing bushings. There are two isolators at the front of the hydrostatic pumps and one at the rear.


A-Isolators

N60595

OUO6092,00003CB -19-30JUL02-1/1
