Adjust Rearview Mirrors

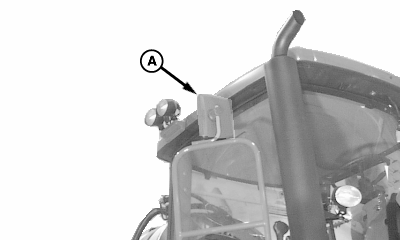

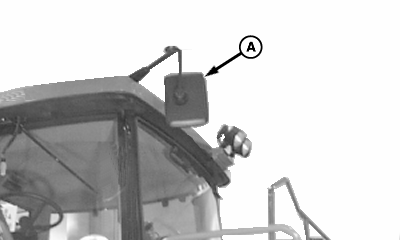

Adjust mirrors (A) for desired rear visibility by pivoting mirror heads.


A-Mirrors

N66753
N66754

OUO6092,000049C -19-14OCT04-1/2

NOTE: Undercarriage mirror can be positioned for taller crops by using two top holes in right-hand tread adjust frame, or for shorter crop conditions using two lower holes.

To change undercarriage mirror height (mirror located on right front axle):

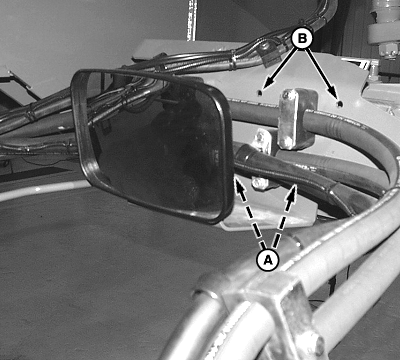

1. Remove cap screws (A) and flange nuts.

2. Align mirror bracket with two upper holes (B).

3. Reinstall cap screws and flange nuts.


A-Cap Screws
B-Holes
