Operating Turn Signals, Horn and High/Low Beam

Push lever (A) up for a right turn, or pull down for a left turn. Return lever to center position after completing turn.

Push inward on end of lever (B) to activate horn.

Push lever forward to activate high beam head lights. Pull lever into center position to operate low beam. Pull lever toward you and release to flash high beam.

Dim headlights for oncoming vehicles. Adjust headlights correctly. (See Aiming Headlights in the Electrical System Service section.)

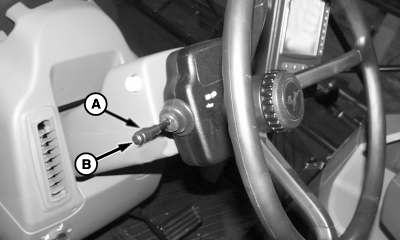

A-Lever
B-End of Lever

OUO6092,00005B1 -19-29MAR04-1/1
