Interior Convenience And Outdoor Sentry Lights

    Interior convenience light (A) and outdoor sentry light (B) illuminate simultaneously and are both controlled using three position switch (C).

  • OFF position
  • ON position-Interior convenience light and outdoor sentry light will illuminate when the cab door is opened and will go out when the door is closed.
  • ON position-Interior convenience light and outdoor sentry light will illuminate until the switch is returned to either of the other two positions.


A-Interior Convenience Light
B-Outdoor Sentry Light
C-Three Position Switch

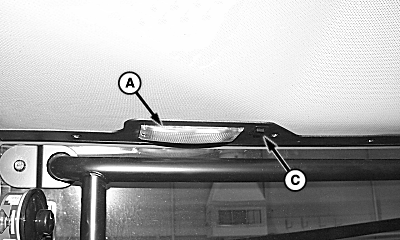

N63984

Interior Convenience Light

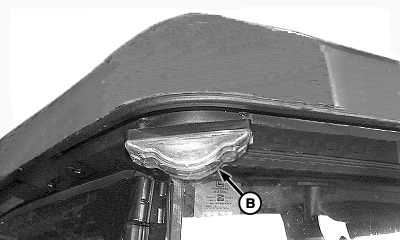

N63985

Outdoor Sentry Light

OUO6092,00005BF -19-29MAR04-1/1
