Using Emergency Brake

CAUTION: Pressing emergency brake switch will cause machine to suddenly stop and can cause serious injury or death. Wear seat belt. Be prepared for rapid decrease in speed. Only use emergency brake switch in an emergency braking situation.

IMPORTANT: If emergency brake is pressed while machine is moving, park brakes will need to be tested to verify proper operation. (See Verify Proper Operation Of Park Brakes in Operating The Machine section.)

Emergency brake switch does not need to be engaged when parking machine. Park brakes are automatically applied when hydro lever is placed in the "PARK" position and the SPRAYSTAR system reads "0" mph for 0.5 seconds or the engine is shut "OFF".

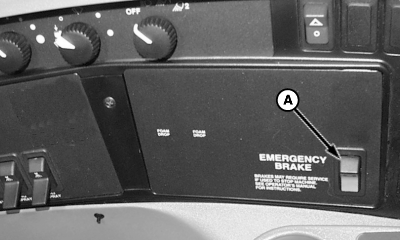

If primary and/or secondary braking fails, or emergency braking situation occurs, put the hydro lever in PARK position, press brake pedal, and press emergency braking switch (A). Prepare for a very rapid decrease in speed.

A-Emergency Brake Switch

OUO6092,00005CA -19-30MAR04-1/1
