Filling Fuel Tank

causym CAUTION: Shut off engine before filling fuel tank.

NOTE: Fuel tank capacity is 360 L (95 gal).

Remove fuel tank cap (A). Fill tank with proper grade diesel fuel. (See Lubrication And Maintenance section for diesel fuel specifications.)

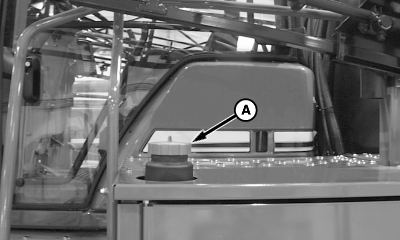

A-Fuel Tank Cap

N53969

OUO6092,00005D9 -19-30MAR04-1/1
