Draining Water Separator

IMPORTANT: When draining water from fuel filters, the drain valve must be unthreaded completely and the valve must drop down approximately 12 mm (0.5 in.) to properly drain water from filter.

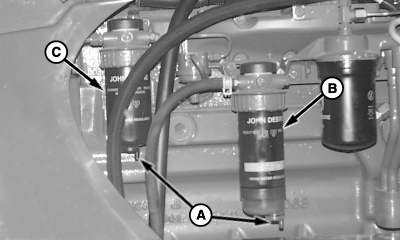

Drain water and contaminates from water separator bowl by opening the drain valve (A) on the primary (B) and secondary (C) filters.

A-Drain Valve
B-Primary Filter
C-Secondary Filter
