Controlling Air Flow

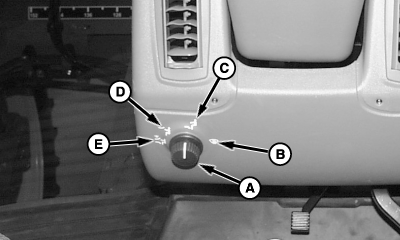

1. Turn air flow knob (A) to direct air flow between windshield (B), side console and rear vent (C), dash (D) or a combination of all (E) .

2. Direct side console vent (F) and rear vent (G) (at right-hand rear seat base) as needed.


A-Air Flow Knob
B-Windshield
C-Side Console and Rear Vent
D-Dash
E-All Vents
F-Side Console Vent
G-Rear Vent

N65875
N63043

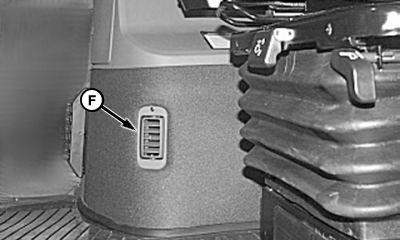

Side Console Vent

N63285

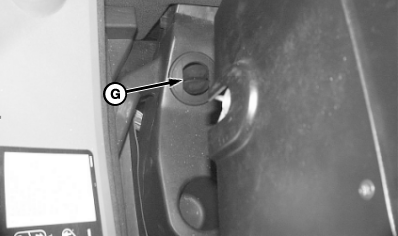

Rear Vent

OUO6092,0000601 -19-18MAY04-1/1
