Fence Row Nozzles-If Equipped

No setup in the SPRAYSTAR Display is needed for the fence row nozzles.

The SPRAYSTAR system will recognize the fence row nozzles when the fence row nozzle switches (A) are installed on the console. It will automatically adjust the Spray Rate Controller when the fence row nozzle is turned on.

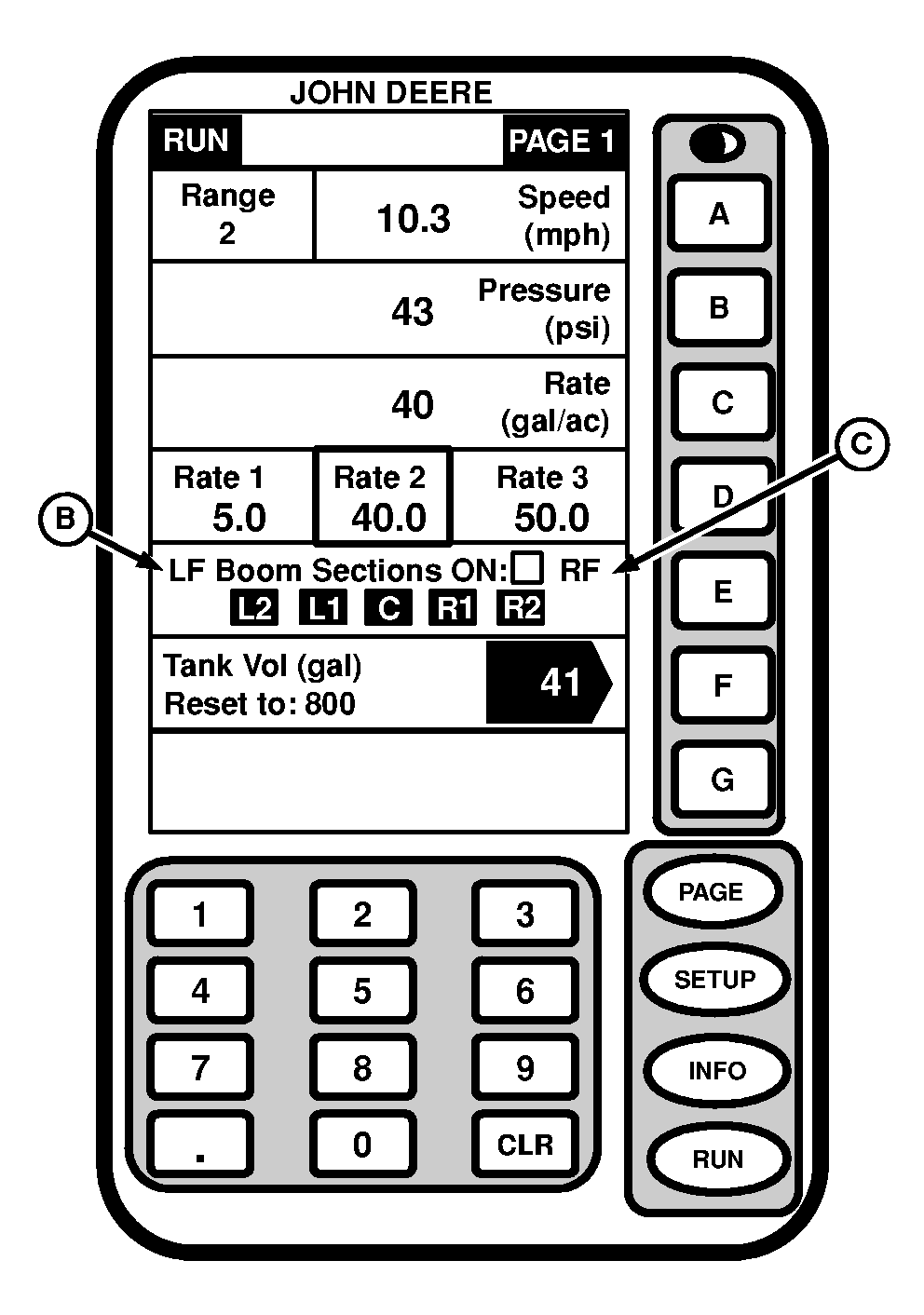

When the fence row nozzle is turned on, an "LF" (B) or "RF" (C) will appear above the boom sections on Page 1 of the RUN of the SPRAYSTAR display.

The hectare (acre) counter on "RUN PAGE 2" and "JOB SUMMARIES PAGE" of SPRAYSTAR Display will record the additional spacing of 508 mm (20 in.) per end row nozzle when turned on.

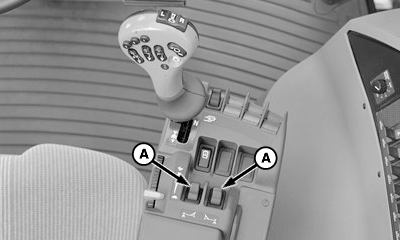

A-Fence Row Nozzle Switches
B-"LF"
C-"RF"
