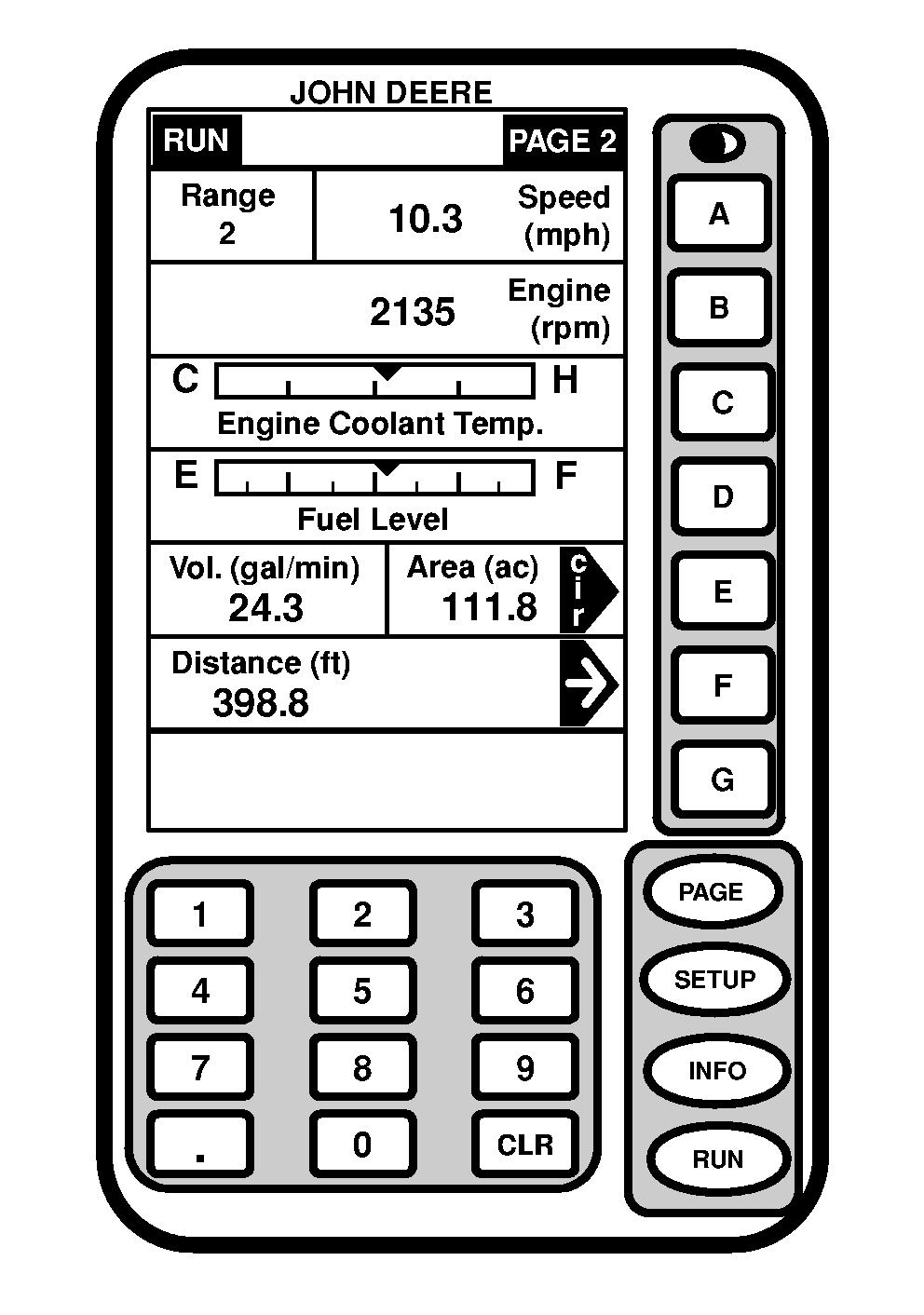

Run-Page 2 of SPRAYSTAR SystemPress "RUN" to bring up RUN menu. Press "PAGE" to bring up page 2. Page 2 displays the following if default run page display screens are used: Line A -Speed: Speed range selected and speed the sprayer is traveling. Radar symbol appears when radar (if equipped) is operating. Line B -Engine speed in RPM. Line C -Engine Coolant Temperature Gauge: Temperature of coolant. Line D -Fuel Tank Level: Amount of fuel left in tank. Line E -Volume: Solution flow rate in Lpm (gpm). Area: Area sprayed since gauge was reset. Line F -Distance: Distance sprayer has traveled. Distance counter will automatically switch over to kilometers at 1000 m or miles at 5280 ft. Line G -Caution statement appears here also. |
|
OUO6092,000060B -19-15JUN04-1/1 |
