2. Press letter button next to "SprayStar".

3. Press "PAGE" button.

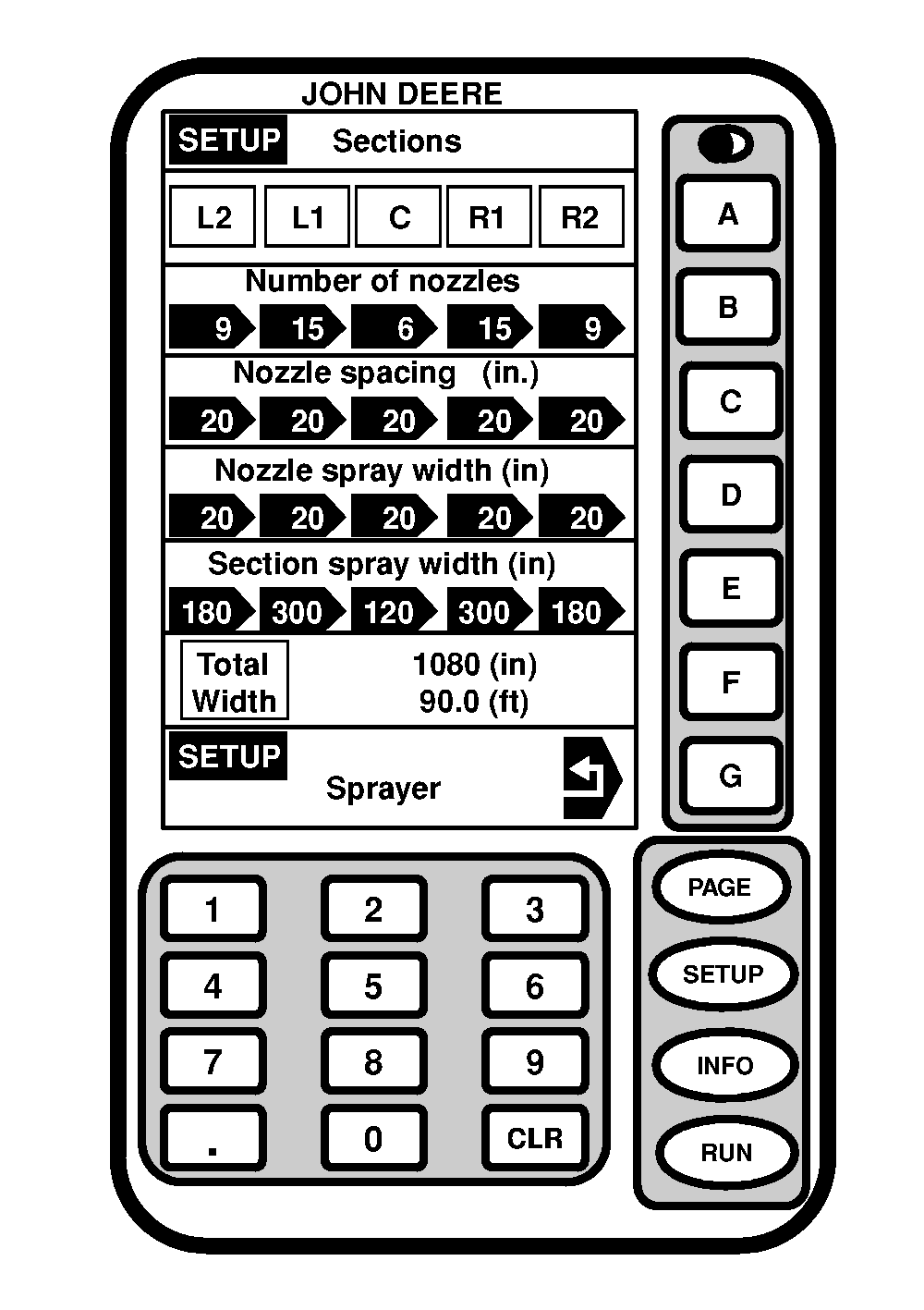

4. Press letter button next to "Setup Sections".

5. Enter the desired number of sections, 3, 4, or 5 (this number should correspond with the number of boom section shut-off valves on the boom).

6. Press letter button next to "Setup Sections" to save this value. The "SETUP Sections" page appears.

7. Press letter button next to "Number of nozzles", enter number of nozzles on "L2" section.

8. Press letter button next to "Number of nozzles" to save this value and enter the number of nozzles on

9. Press letter button next to "Number spacing (in.)", enter nozzle spacing on "L2" section.

10. Press letter button next to "Number spacing (in.)" to save this value and enter the nozzle spacing on the "L1" section. (Repeat for each section on boom.)

NOTE: In broadcast spraying only, nozzle spray width is equal to nozzle spacing. Refer to back side of nozzle tip calculator to determine effective tip spray width.

11. Press letter button next to "Nozzle spray width (in.)", enter nozzle spray width on "L2" boom section.

OUO6092,0000611 -19-08OCT04-1/2

NOTE: Section spray width and total width are calculated automatically from above settings.

13. Press letter button next return icon to return to "SETUP-Sprayer-PAGE 2" or press "RUN" to return to Page 1 of the RUN menu.
