Programming SPRAYSTAR for Band Spraying

The SPRAYSTAR boom sections setup is programmed differently for band spraying than for broadcast spraying.

1. Press "SETUP" button.

2. Press letter button next to "SprayStar".

3. Press "PAGE" button.

4. Press letter button next to "Setup Sections".

5. Enter the desired number of sections, 3, 4, or 5 (this number should correspond with the number of boom section shut-off valves on the boom).

6. Press letter button next to "Setup Sections" to save this value. The "SETUP Sections" page appears.

7. Press letter button next to "Number of nozzles", enter number of crop rows the boom section will be banding instead of number of nozzles the boom section has.

8. Press letter button next to "Number of nozzles" to save this value. (Repeat for each boom section.)

9. Press letter button next to "Nozzle Spacing (in.)", enter crop row width instead of nozzle spacing.

10. Press letter button next to "Nozzle Spacing (in.)" to save this value. (Repeat for each boom section.)

11. Press letter button next to "Section spray width (in.)", enter band width instead of spray width.

12. Press letter button next to "Section spray width (in.)" to save this value. (Repeat for each boom section.)

13. Press "G" to return to Page 2 of SETUP or RUN to return to Page 1 of RUN menu.

N66257

OUO6092,0000612 -19-16SEP04-1/2

NOTE: Make sure target application rate is for banded area and not covered area.

The acre counter on both Page 2 of Run and in Job Summaries records covered acres and not banded acres.

The application rate in Job Summaries is calculated by total volume applied divided by covered acres, NOT banded acres. When band spraying, the application rate in Job Summaries will always be a percentage of the target rate.

To determine if application rate in Job Summaries is correct, use the following equation:

Job Summaries Application Rate = Target Application Rate x Band Width ÷ Row Width

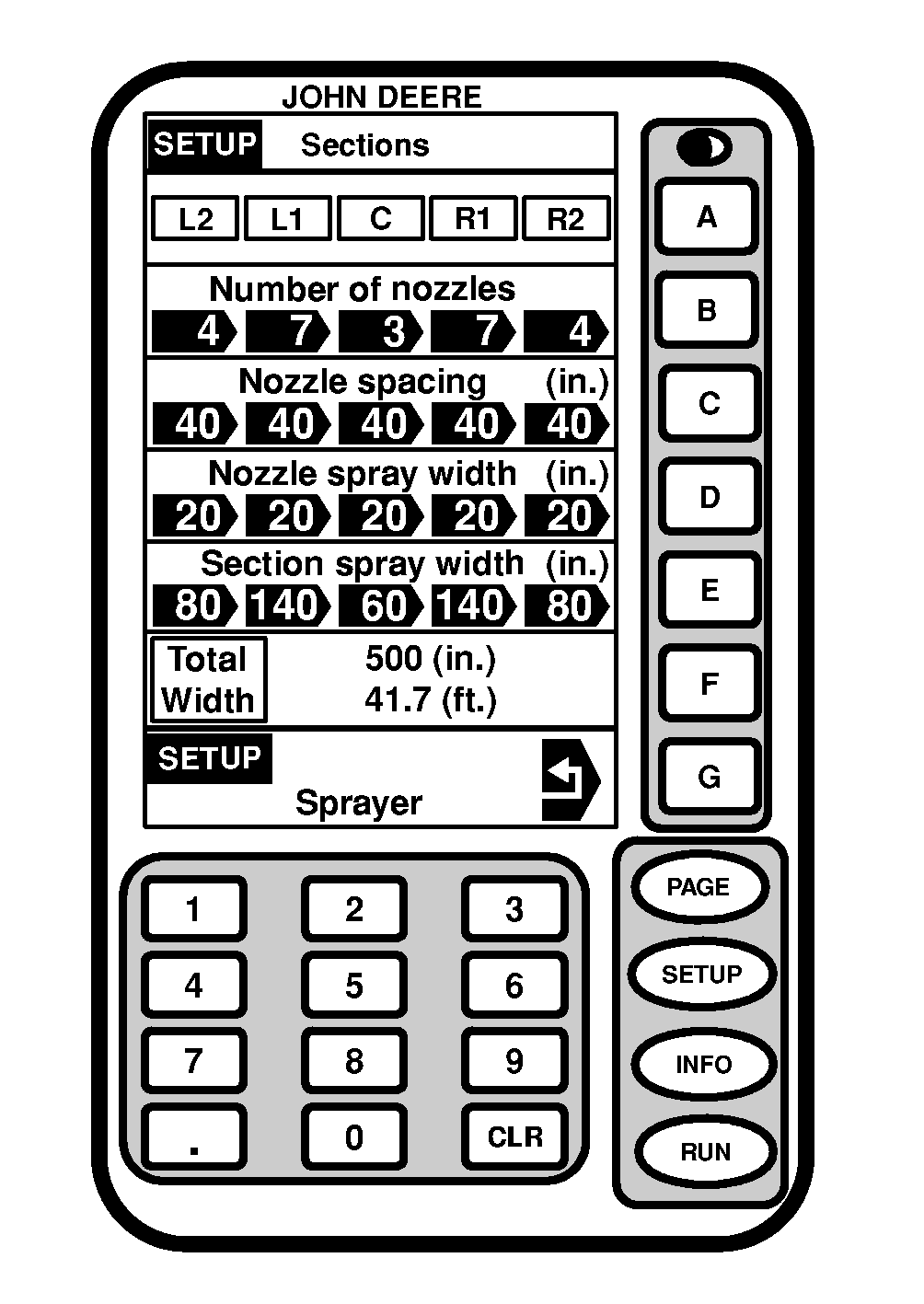

NOTE: The sample SETUP screen on this page has been programmed for banding 40 in. rows with a banding width of 20 in.

OUO6092,0000612 -19-16SEP04-2/2
