Turning Ladder Alarm On/Off

The "Ladder" alarm occurs when vehicle speed exceeds 5 km/h (3 mph) and ladder is not raised completely. Crop could be damaged, depending on field conditions.

To turn the alarm "ON" or "OFF":

1. Press "SETUP".

2. Press letter button next to "SprayStar".

3. Press "PAGE".

4. Press letter button next to "Alarm Setup".

5. Press letter button next to "Ladder Alarm:" to toggle between alarm "ON" or "OFF".

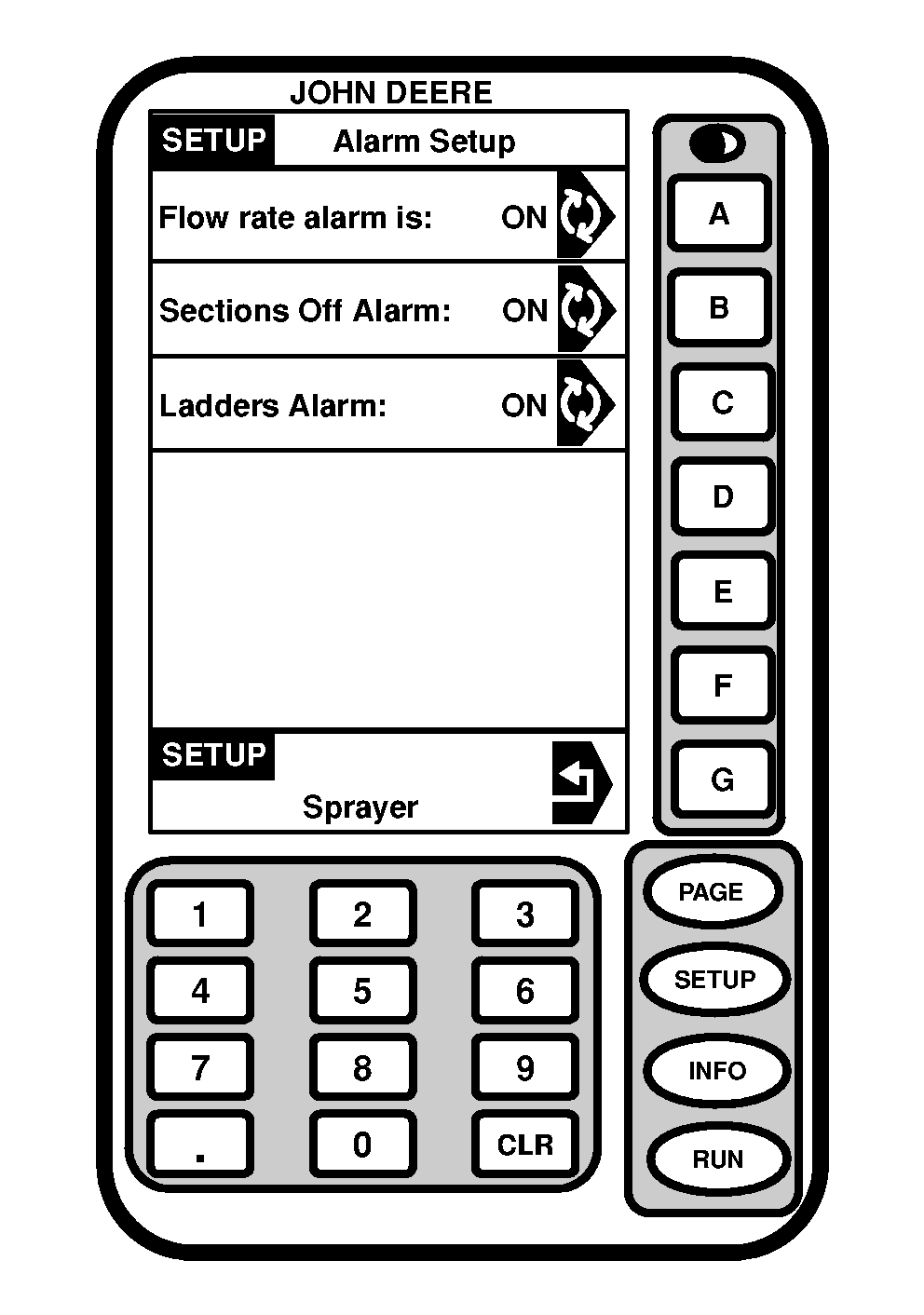

N66487

OUO6092,0000618 -19-18JUN04-1/1
