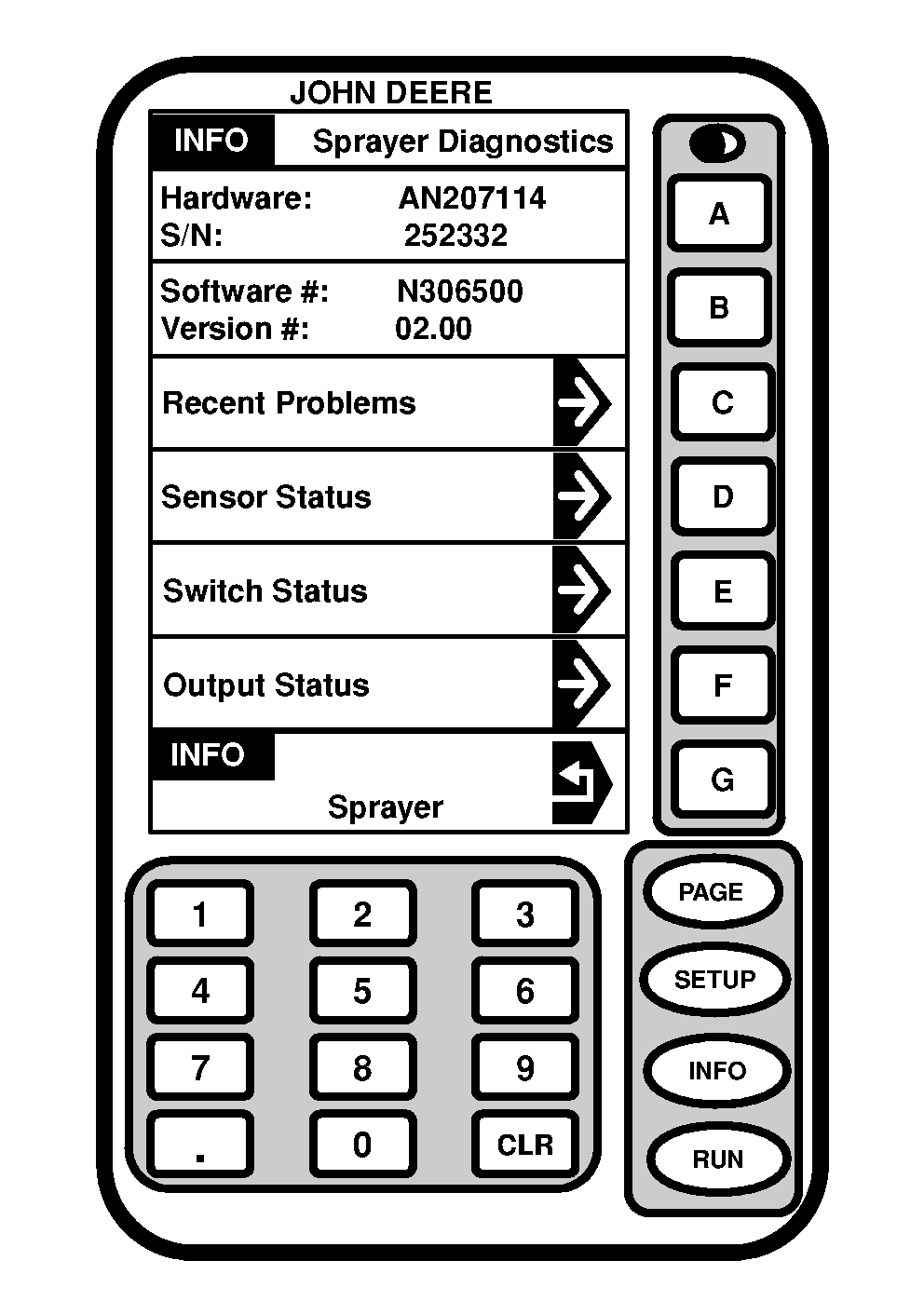

The diagnostic page display the hardware number and serial number as well as Software number used and it's serial number.

The diagnostic page also allows the operator to access pages showing recent problems, sensor status, switch status, and output status.

Recent Problems- Displays recorded fault codes. These fault codes can be erased.

Sensor Status- Allows the operator to check whether the sensors are operating within their specified range.

Switch Status- Allows the operator to determine if switches are working properly.

Output Status- Allows the operator to check what the outputs from SPRAYSTAR are. Used to check functionality.
