SprayStar Diagnostics of Switches

The SPRAYSTAR system has the capability of telling the operator whether switches are functioning properly.

To check if a switch is functioning properly:

2. Press letter button next to "SprayStar".

3. Press letter button next to "Sprayer Diagnostics".

4. Press letter button next to "Switch Status".

5. Press "PAGE" to page through two pages of Switch Status.

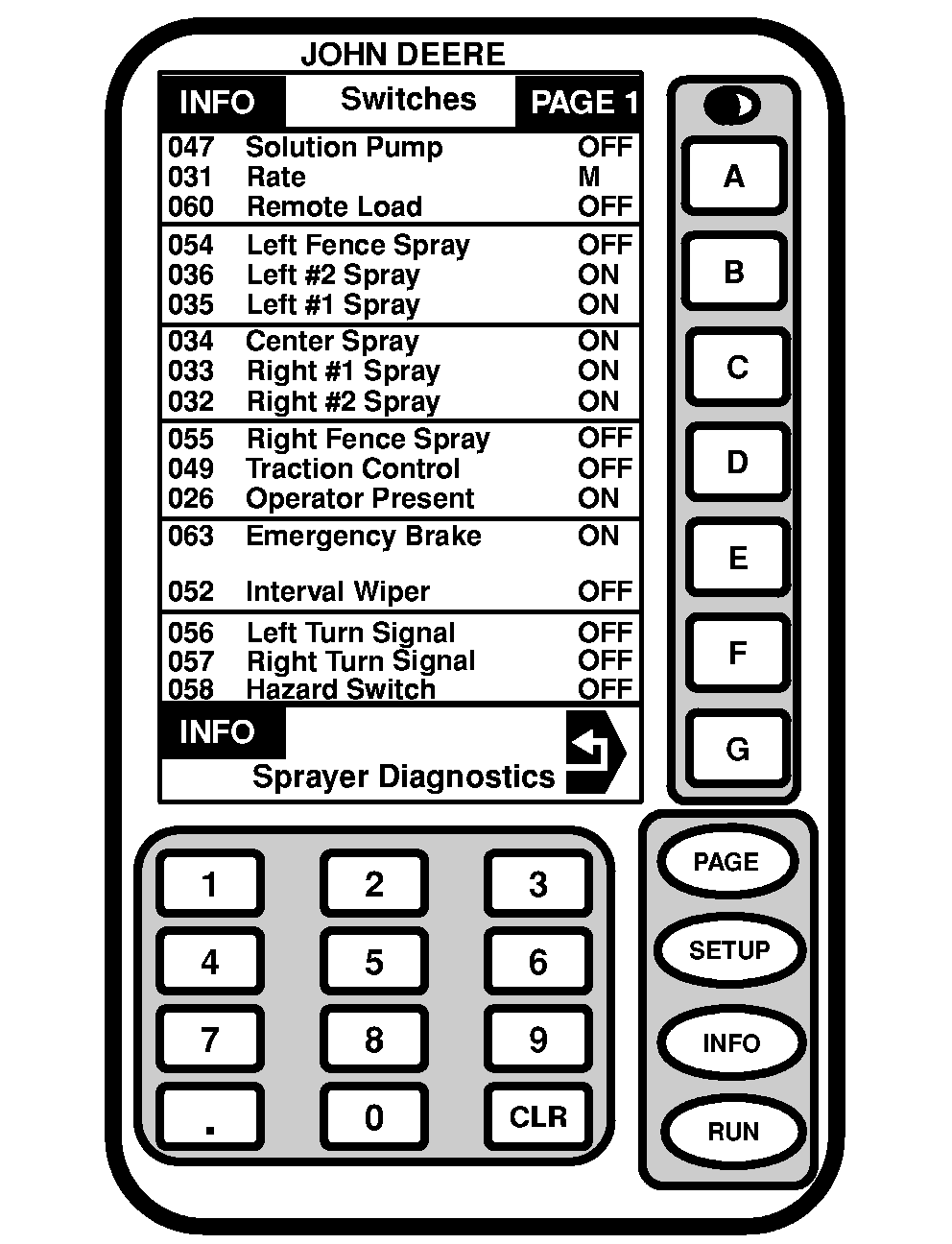

6. Turn desired switch on and off and watch the GREENSTAR Display to see if Switch Status corresponds with switch setting.

7. If Switch Status does not correspond with switch setting, check switch fuse and replace if necessary. If Switch Status and setting still do not correspond, check wiring and switch, replace if necessary.
