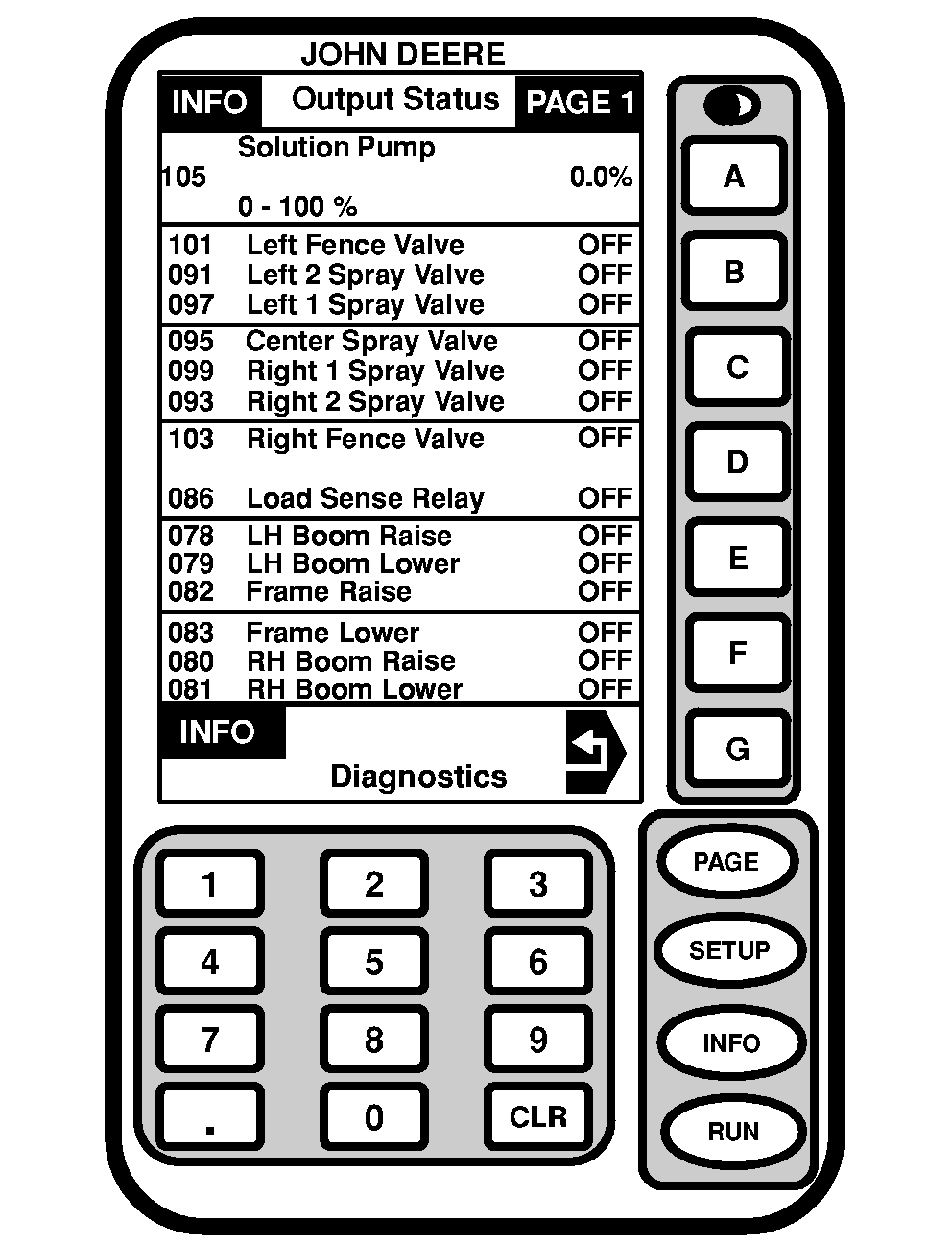

SprayStar Diagnostics Output Status

Allows the operator to check what the outputs from SPRAYSTAR are. Used to check functionality.

1. Press "INFO".

2. Press letter button next to "SprayStar".

3. Press letter button next to "Sprayer Diagnostics".

4. Press letter button next to "Output Status".

5. Press "PAGE" to page through two pages of Output Status.

N66527

OUO6092,000062A -19-23JUN04-1/1
