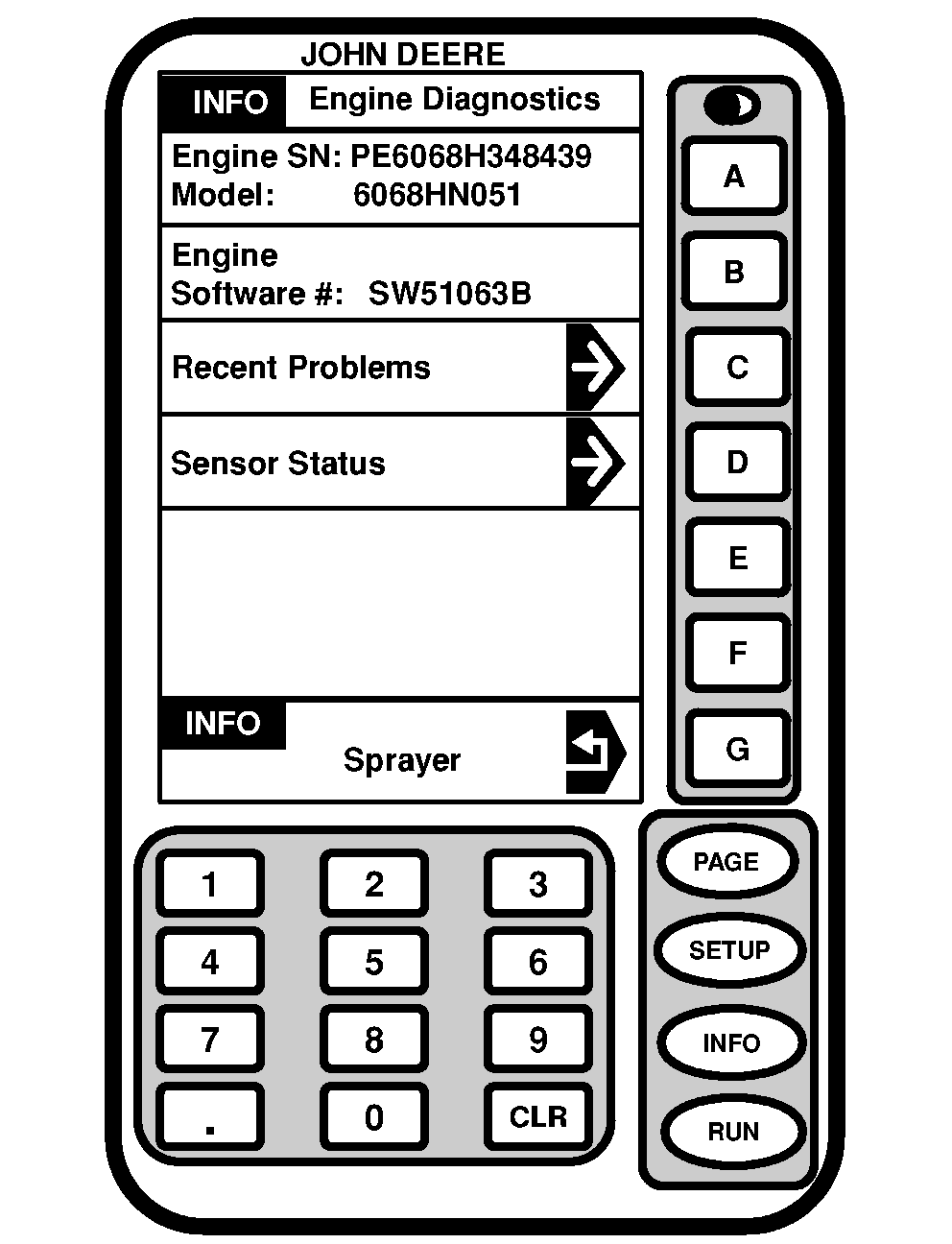

Engine DiagnosticsThe diagnostic page display the engine model number and serial number as well as software version. The diagnostic page also allows the operator to access pages showing recent problems, sensor status, and switch status. Recent Problems- Displays recorded fault codes. These fault codes can be erased. Sensor Status- Allows the operator to check whether the sensors are operating within their specified range. |
|
OUO6092,000062E -19-24JUN04-1/1 |
