GREENSTAR Display Information

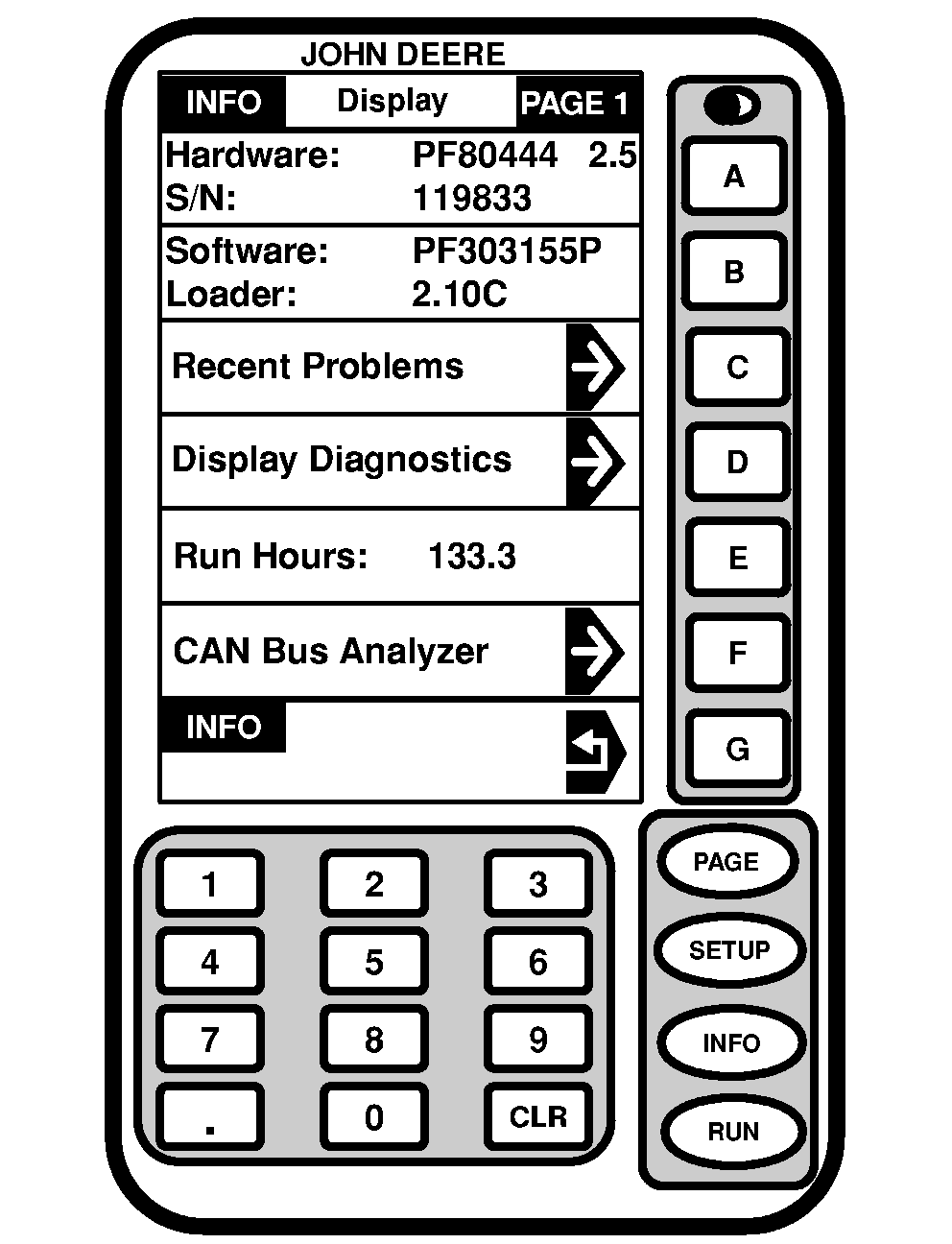

The information page displays the hardware number and serial number as well as software number used and it's serial number.

The diagnostic page also allows the operator to access pages showing recent problems, display diagnostics, and CAN Bus analyzer.

Recent Problems- Displays recorded fault codes. These fault codes can be erased.

Display Diagnostics- Allows the operator to check whether the display is operating correctly.

CAN Bus Analyzer- Allows the operator to check CAN Bus operation.

OUO6092,0000631 -19-24JUN04-1/1
