Controlling Temperature

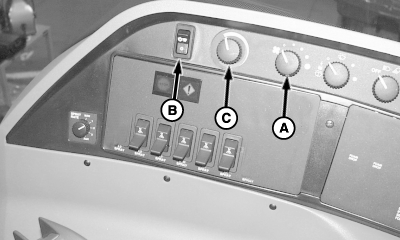

Blower knob (A) and defroster/air conditioning switch (B) must be in an ON position before the defroster/air conditioning system will operate.

Temperature knob (C) controls the heater and defroster/air conditioner temperature.

Put defroster/air conditioning switch in the ON position by pressing top of switch to defog the windows, and adjust temperature knob to desired temperature.

A-Blower Knob
B-Defroster/AC Switch
C-Temperature Knob

OUO6092,000064C -19-19JUL04-1/1
