Operating Windshield Wiper/Washer

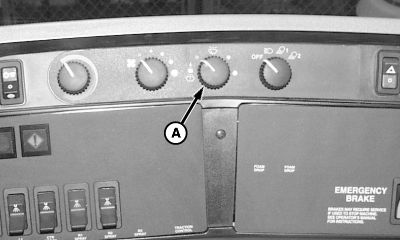

Rotate knob (A) to operate wiper at desired speed:

• Off
• Intermittent
• Slow
• Fast

Push knob in to operate windshield washer.

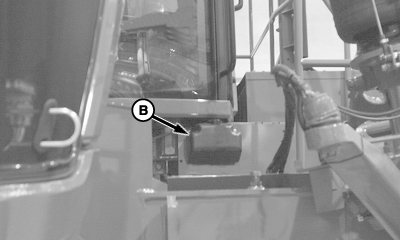

Fill washer reservoir (B) below left front corner of cab with non-freezing solvent to prevent damage to washer system in cold temperatures.

A-Knob
B-Washer Reservoir

OUO6092,000064D -19-22JUL04-1/1
