Using Boom Section Switches

Lift boom section switches (A) to enable corresponding boom sections. Enabled sections appear on GREENSTAR display with box (B) around section. Enabled sections then can be activated with Spray System Master ON/OFF Switch (C).

NOTE: Boom sections numbered as 1 closest to center on designated side, and 2 being farthest to outside.

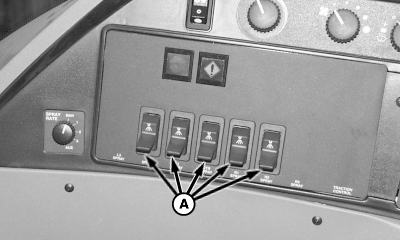

A-Boom Section Switches

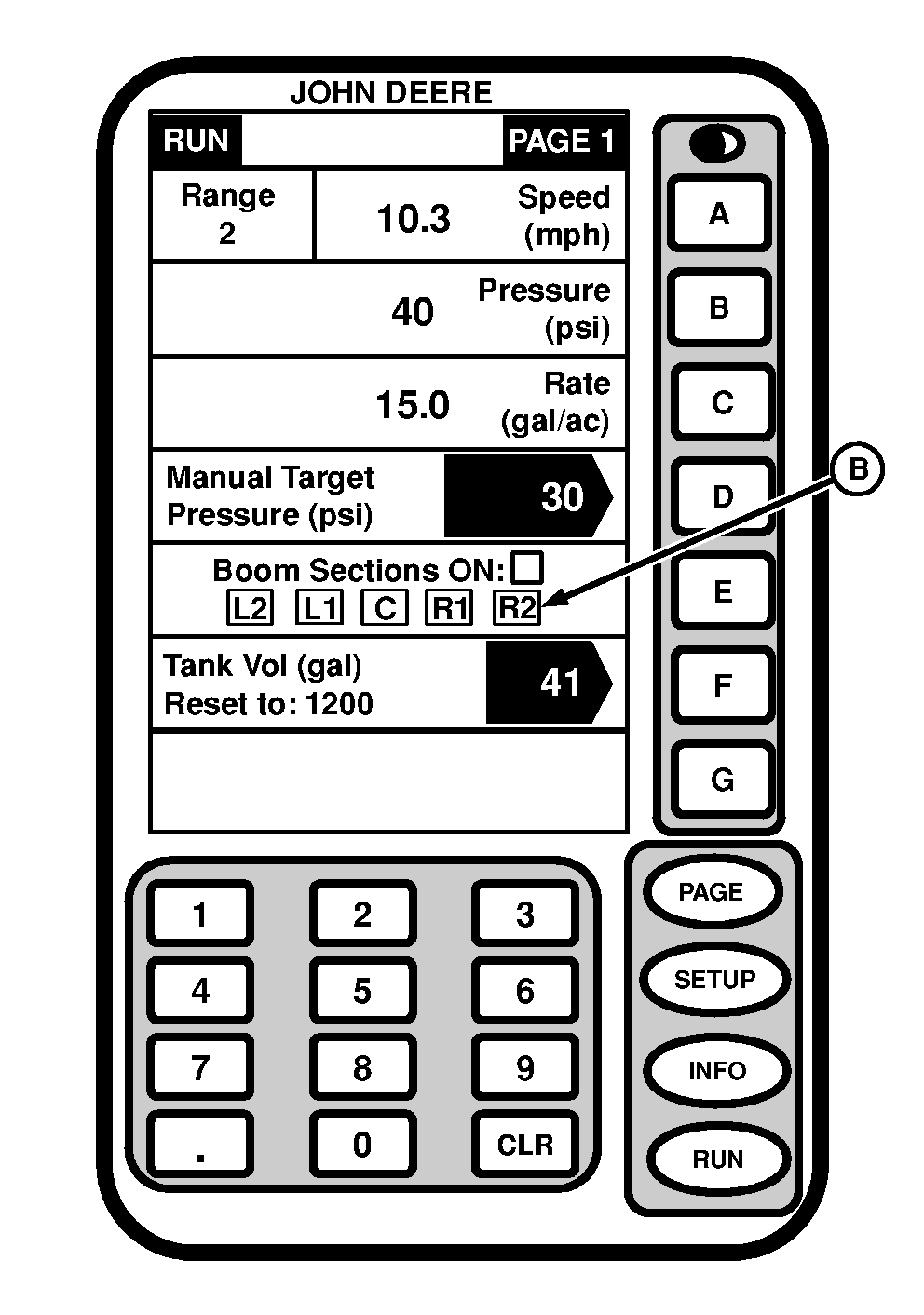

B-Box

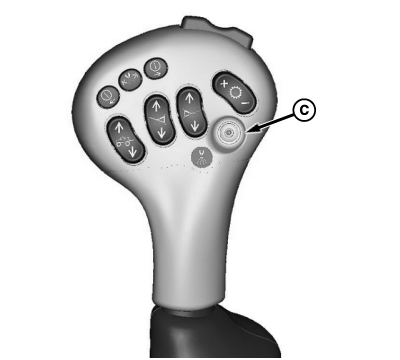

C-Master ON/Off switch

OUO6092,0000650 -19-20JUL04-1/1
