Spray System Master ON/OFF Switch

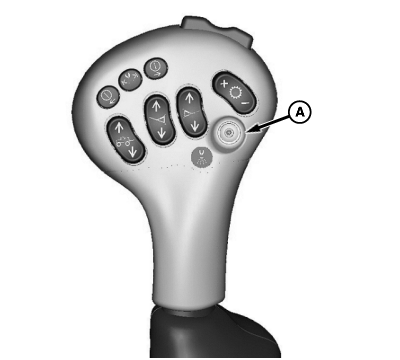

Press switch (A) to turn enabled boom sections on and press again to turn off.

LED in center of switch will illuminate when switch is on.

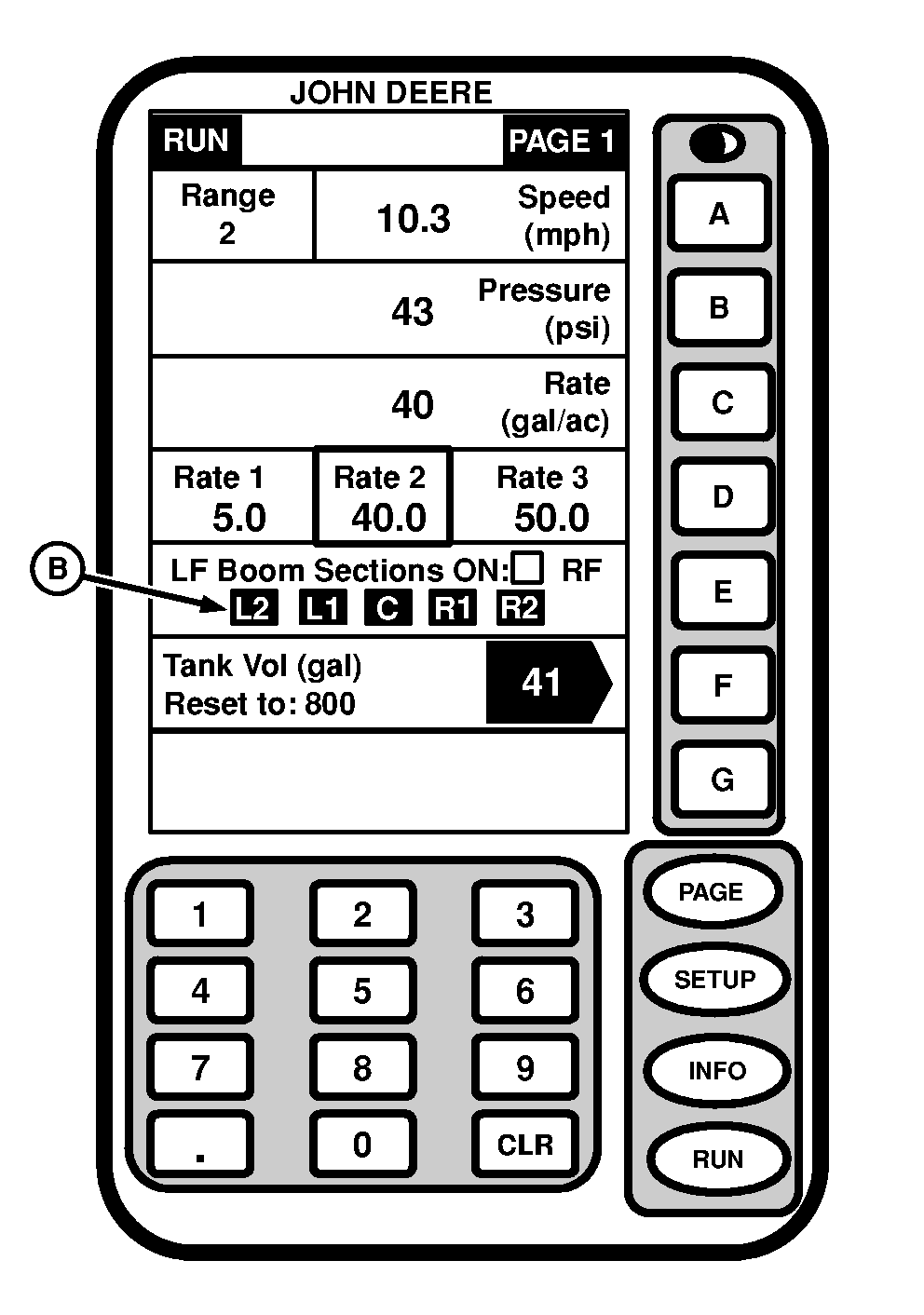

Sections (B) that are actively spraying once Master ON/OFF switch is pressed, will appear on display with a dark background and a lighter letter.


A-Switch
B-Sections

N63294
N66742

OUO6092,0000654 -19-21JUL04-1/1
