Left-hand and Right-hand Fence Row Nozzles Switches-If Equipped

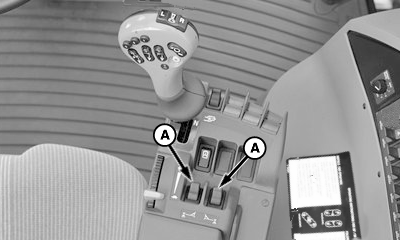

Push left or right fence row nozzle switches (A) forward to engage left or right side fence row nozzle. Pull back to disengage.

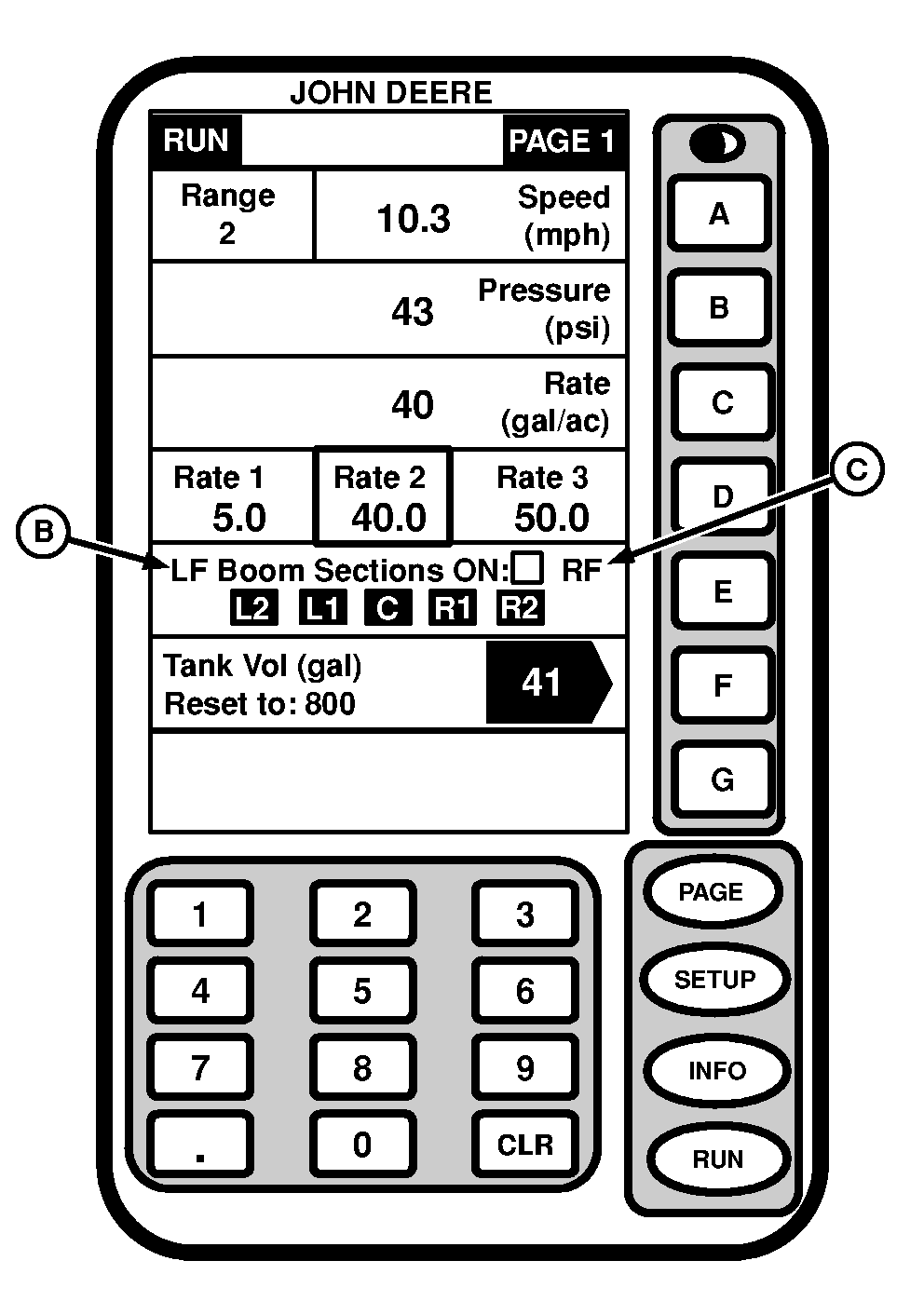

When the fence row nozzle is turned on, an "LF" (B) or "RF" (C) will appear above the boom sections on Page 1 of the RUN menu.

NOTE: Fence row nozzle will not operate if outer section (L2 or R2) on corresponding side is not enabled.

A-Fence Row Nozzle Switches
B-"LF"
C-"RF"

OUO6092,0000659 -19-14SEP04-1/1
