Checking Engine Oil Level

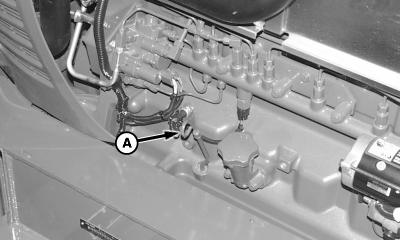

Remove dipstick (A) and check oil level with sprayer on level ground. Oil level should be between the "ADD" and the top of the cross-hatch area on dipstick.

NOTE: Tighten dipstick to check oil. Cross-hatch area is considered FULL.

Do not operate engine with oil level below the "ADD" mark on dipstick.

A-Dipstick

OUO6092,00006A7 -19-14SEP04-1/1
