Checking Coolant Level

1. Check coolant level at sight tube (A), BEFORE starting sprayer. Level should be slightly above lower mark when engine is cold.

2. If coolant level is low;

a. Raise hood.

b. Check for any signs of leakage. Repair if necessary.

c. Tighten all hose clamps.

d. Remove overflow tank cap (B) and add coolant, as specified in Fuel, Lubricants and Coolant section.

e. Lower hood.

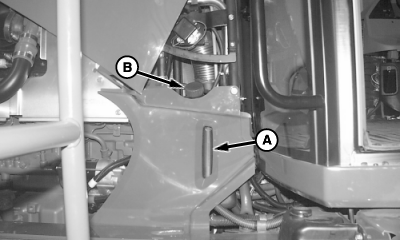

N67607

Left-Hand Side


A-Sight Tube
B-Overflow Tank Cap

OUO6092,00006AD -19-14SEP04-1/1
