Operating in the Field

1. Unfold boom and press raise/lower switch (A) to position boom at desired operating height.

2. Setup SPRAYSTAR control unit for your particular application. (See SPRAYSTAR System section for proper setup procedure.)

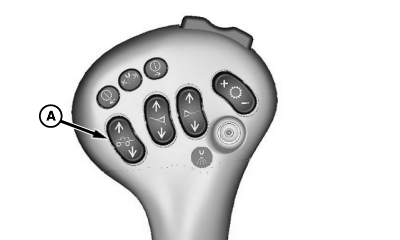

A-Raise/Lower Switch

N67612
N69079

OUO6092,00006B3 -19-12OCT04-1/5

3. Push forward on solution pump switch (A) to engage solution pump.


A-Solution Pump Switch

N66744

OUO6092,00006B3 -19-12OCT04-2/5

4. Press "RUN" button to view spray operation display on monitor screen.

5. Turn rate control switch (A) to desired application rate (1, 2 or 3) or to manual pressure setting (MAN).

NOTE: Rate selected will have a square around selected rate on monitor screen.

"AUX" position on rate control switch is not used.

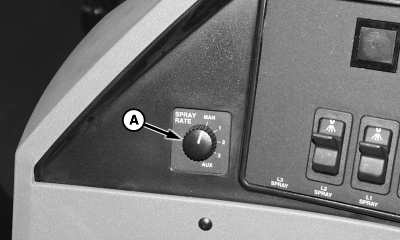

A-Rate Control Switch

N60082
N66489

OUO6092,00006B3 -19-12OCT04-3/5

6. Push multifunction control handle (A) slowly forward to start forward motion.

7. Lift all boom section switches (B).

8. Press master ON/OFF switch (C) to start spraying operation.

NOTE: On Page 1 of RUN display, a square will be around the sections that are spraying.

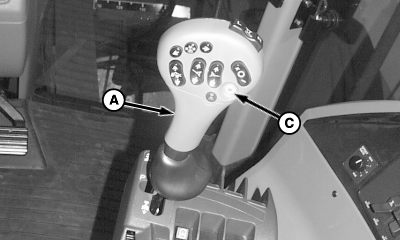

A-Multifunction Control Handle
B-Boom Section Switches
C-Master ON/OFF Switch

N67613
N67615

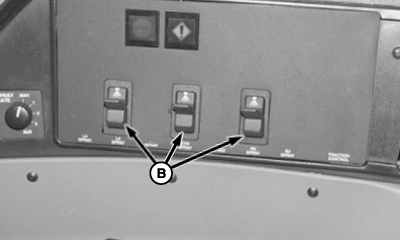

3 Boom Section Switches (60 ft. Boom)

N67614

5 Boom Section Switches (80-90 ft. Boom)

OUO6092,00006B3 -19-12OCT04-4/5

NOTE: Spray system shut-down is not immediate. Solution flow will continue for a few seconds after pressing master ON/OFF switch. For best response time and coverage, turn spray off as you slow for row end.

9. At row end, press master ON/OFF switch (A) to stop spraying. All other switches can remain in pre-set positions.

NOTE: Spray system start-up is not immediate. To overcome delayed response, press master ON/OFF switch while moving forward to start spraying just before solution is actually needed.

10. When aligned with next row, press master ON/OFF switch to resume spraying.

N66488


A-Master ON/OFF Switch

OUO6092,00006B3 -19-12OCT04-5/5
