Operating IBS

This machine is equipped with indexed boom section switching. This gives the operator another way to shut off boom sections in sequence without removing your hand from the multifunction control handle. This function is useful when working with point rows and waterways.

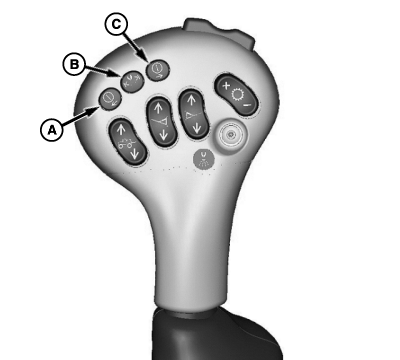

There are three buttons to operate this function.

A-IBS Left Button
B-IBS Reset Button
C-IBS Right Button

OUO6092,00006B4 -19-23SEP04-1/3

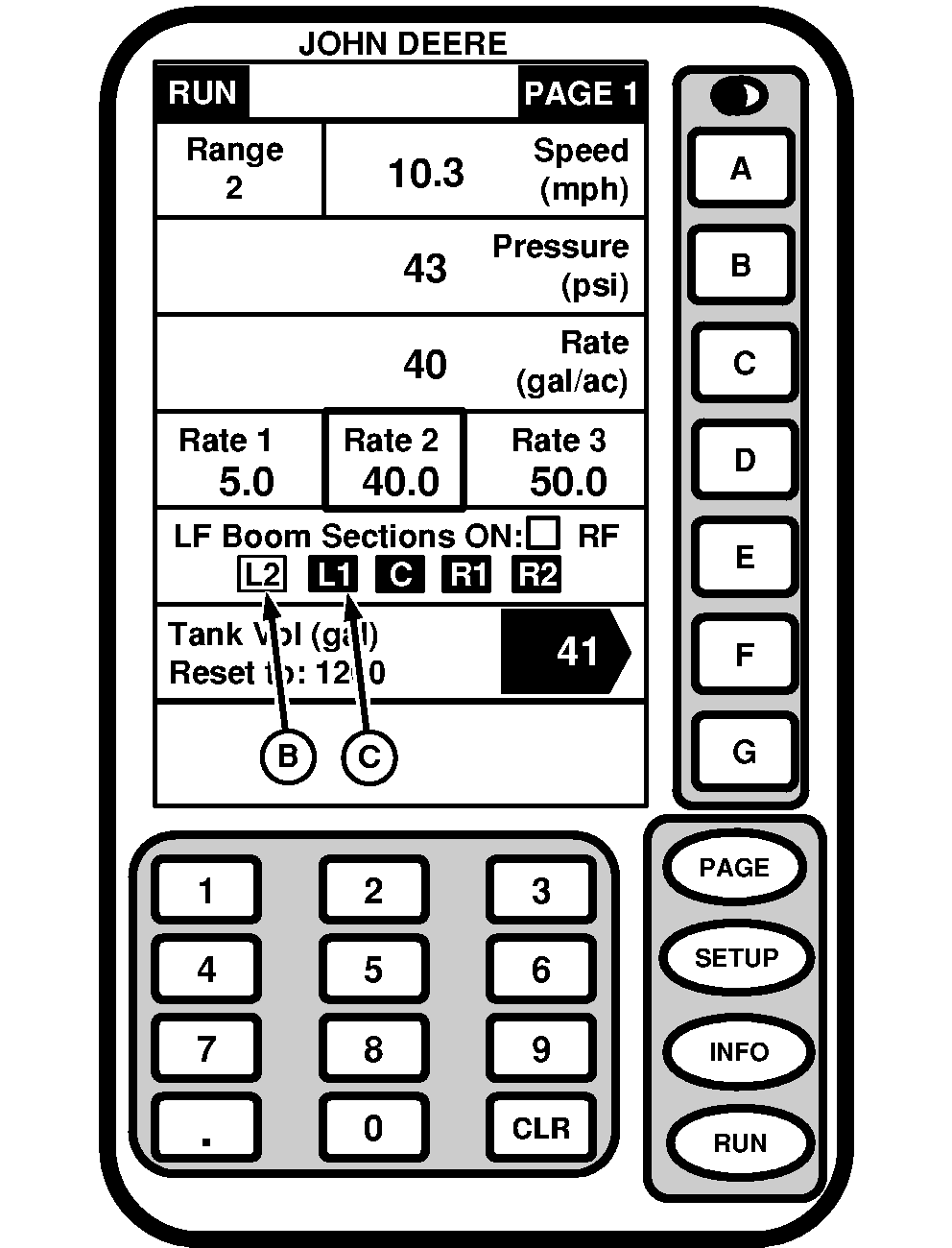

EXAMPLE: If you are coming upon an angled waterway and you would like to shut off sections in sequence from left to right, press and release IBS right button (A) once to shut off left-hand outer boom section (B) (L2 on display). Press and release button (A) again to shut off section (C) (L1 on display). Continue to press and release button (A) to shut off remaining sections across the entire boom.

Once all sections have been shut off, press and release button (A) again to turn on section (B), then (C) and so on.

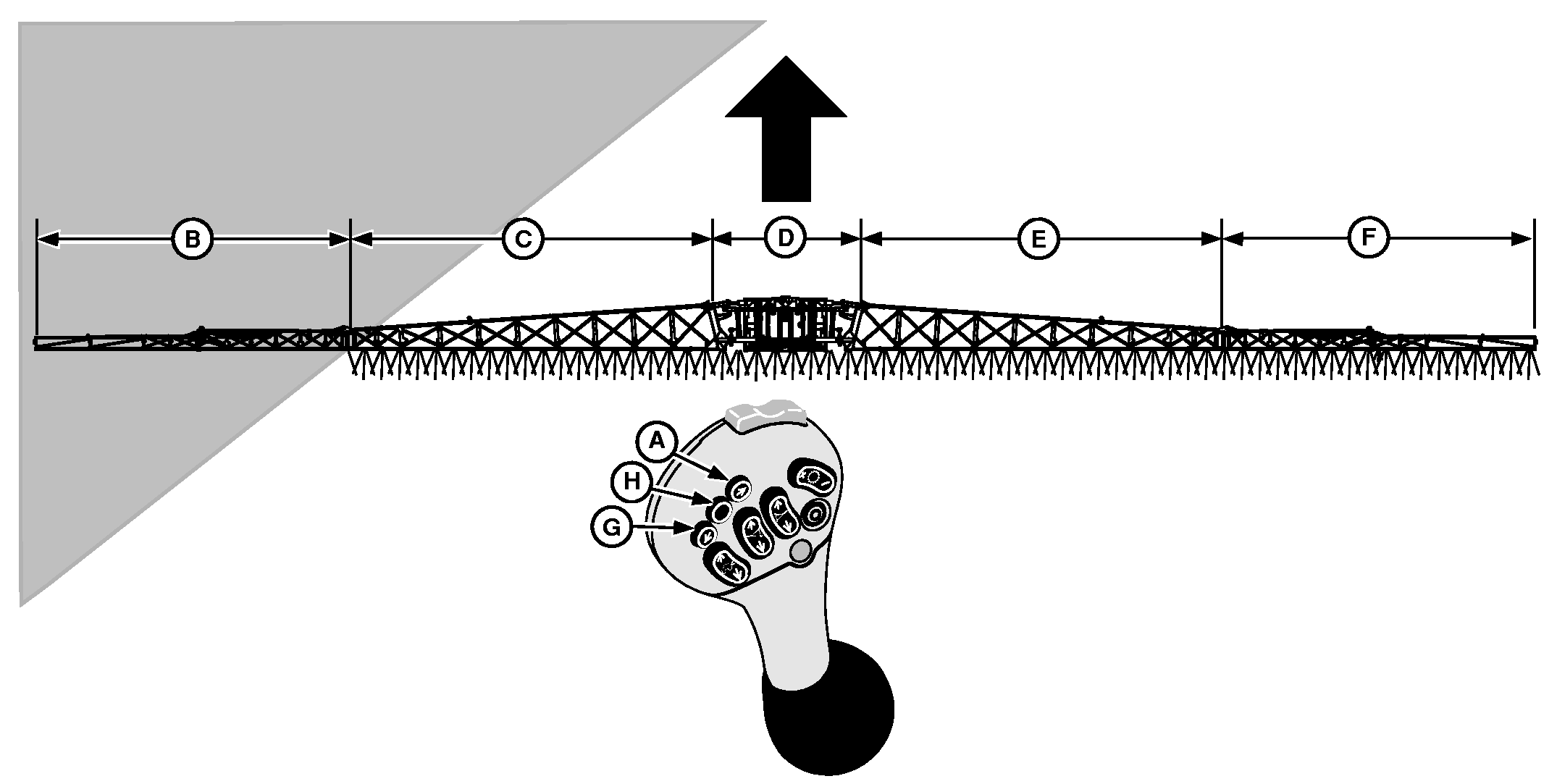

A-IBS Right Button
B-Left-Hand Outer Boom Section ("L2" On Display)
C-Left-Hand Inner Boom Section ("L1" On Display)
D-Center Boom Section ("C" On Display)
E-Right-Hand Inner Boom Section ("R1" On Display)
F-Right-Hand Outer Boom Section ("R2" On Display)
G-IBS Left Button
H-IBS Reset Button

OUO6092,00006B4 -19-23SEP04-2/3

If only a few sections have been turned off using button (A), you can turn them back on in sequence one at time using button IBS left button (G) or turn them all back on at once using IBS reset button (H).

Sections can be shut off from the right-to-left using button (G).

NOTE: The fence row nozzles will shut off when the outside boom sections (R2 and L2) are switched off.
