Parking the Machine

1. To slow and stop the machine, slowly return the multifunction control handle (A) to "PARK" and press down on brake pedal.

NOTE: The parking brake will automatically be applied when SPRAYSTAR system reads "0" mph for 5 seconds and multifunction control handle is in "PARK" position or when engine is turned "OFF". Emergency brake switch DOES NOT need to be applied.

2. Pull back on throttle (B) to reduce engine speed to slow idle.

3. Turn all lights and accessories "OFF".

IMPORTANT: To prevent engine damage, before stopping engine that has been operating at working load, idle engine for at least 2 minutes to cool hot engine parts.

4. Turn key to "OFF" position and remove key.

5. Lower ladder.

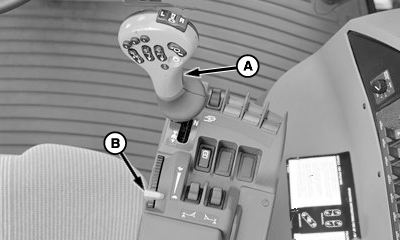

N67619


A-Multifunction Control Handle
B-Throttle

OUO6092,00006B6 -19-15SEP04-1/1
