Folding Boom

causym CAUTION: Avoid injury or death to others. Make sure no one is standing near boom when folding to transport position.

NOTE: A fold and unfold quick reference decal is located on the console.

If equipped with roll bias option, make sure boom is completely horizontal before folding. (See Operating Roll Bias (Option) in this section.)

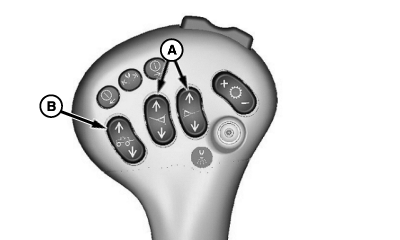

1. Level booms to horizontal using fold/level switches (A).

2. Press top of raise/lower switch (B) and raise boom to highest position.

N67776


A-Fold/Level Switches
B-Raise/Lower Switch

OUO6092,00006CF -19-22SEP04-1/3

IMPORTANT: To avoid excessive wear on booms, do not press and release repeatedly on fold/level switches to slow boom down when folding. Fold cylinders are designed to slow down automatically when close to final fold position.

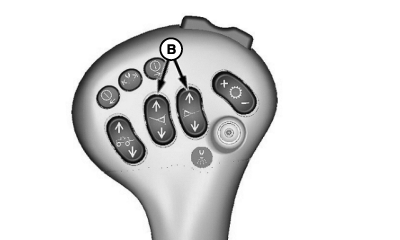

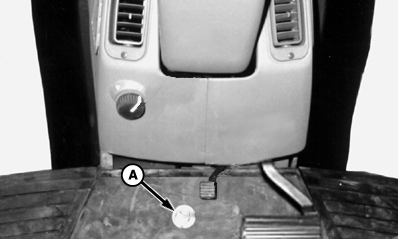

3. Press and hold fold mode switch (A) down while pressing top of fold/level switches (B) until outer booms fold in on inner wings.

4. Momentarily release fold/level switches. Continue to hold down fold mode switch and press and hold top of fold/level switches until inner wing sections fold in against machine.

5. Release fold/level switches and fold mode switch.


A-Fold Mode Switch
B-Fold/Level Switches

N52725
N67775

OUO6092,00006CF -19-22SEP04-2/3

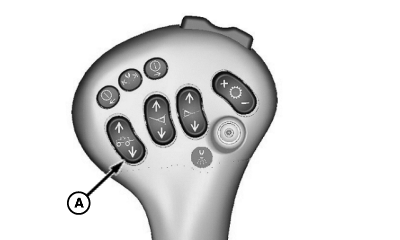

6. Press bottom of raise/lower switch (A) and lower boom into boom rests.

IMPORTANT: Do not level cylinders when boom is folded in unless transporting machine on semi trailer and transport width needs to be under 3.7 m (12 ft) or machine damage will occur.

Machine may be damaged if transported with booms not completely lowered onto boom rests. Booms must be folded and lowered onto boom rests before transporting.

NOTE: Leveling cylinders need to be retracted only when transport width needs to be under 3.7 m (12 ft).

N67773


A-Raise/Lower Switch
