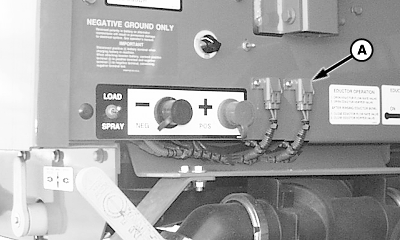

Replacing Foam Marker Compressor Fuse (If Equipped)IMPORTANT: Do not replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer. Foam marker system fuse (A) is located on the left-hand side of the machine next to the remote pump electrical connectors. |
|
OUO6092,00006D5 -19-11OCT04-1/1 |
