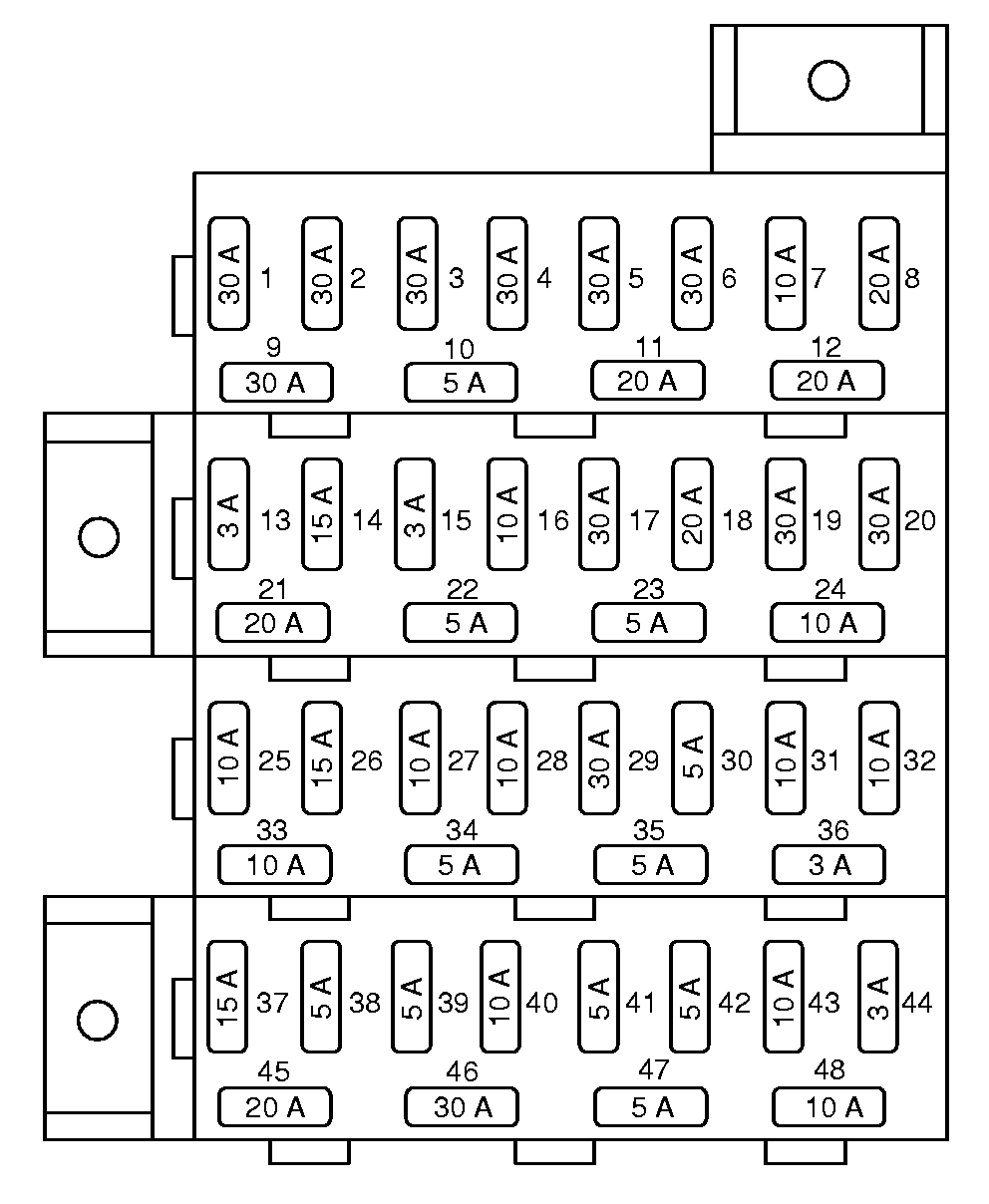

Load Center Fuses
1-Key Switch (30 amp)
2-Accessories (30 amp)
3-Light Switch (30 amp)
4-Road High/Low Lights (30 amp)
5-Chassis Lights (30 amp)
6- Lights (30 amp)
7-Horn and High Lights (10 amp)
8-Hazard Lights (20 amp)
9-Ladder (30 amp)
10-ECU ELX (5 amp)
11-Wiper (20 amp)
12-Spare
13-Armrest and Hydro Handle (3 amp)
14-Boom Hydraulics (15 amp)
15-Windshield Wiper Pulse (3 amp)
16-Hydraulic Load Sense (10 amp)
17-Auxiliary Plug/Accessory (30 amp)
18-Pressurizer Blower (20 amp)
19-Recirculator and Pressurizer Blower (30 amp)
20-Seat (30 amp)
21-Ignition Switch (20 amp)
22-GSD, CAN1, GPS, Mobile Processor (5 amp)
23-Boom Function Select (5 amp)
24-Air Conditioning (10 amp)
25-Turn Signal Switch (10 amp)
26-Traction Control and Shift (15 amp)
27-Spare
28-Park Brake (10 amp)
29-Auxiliary Plug/Battery (30 amp)
30-Radio Memory, Dome Lights (5 amp)
31-CCU Memory (10 amp)
32-Lighter (10 amp)
33-SSU/AutoTrac Driver (10 amp)
34-SSU/AutoTrac Logic (5 amp)
35-SSU/AutoTrac Memory (5 amp)
36-CAN2 (3 amp)
37-CCU Driver (15 amp)
38-CCU Logic (5 amp)
39-RS232 (5 amp)
40-Spare
41-Remote Solution Pump Switch (5 amp)
42-Spray and Hydraulic Pump Switch (5 amp)
43-Radio (10 amp)
44-Cab Blower and Wiper Relays (3 amp)
45-Cab Lights (20 amp)
46-ELX (30 amp)
47-Agitation (5 amp)
48-Foam Marker (10 amp)
|
|
