Transporting Machine

causym CAUTION: DO NOT exceed maximum transport speed of 47 km/h (29 mph) or you may lose control of machine, causing serious injury or death to you or others.

IMPORTANT: Road transport with loaded solution tank is not recommended.

Road transport in excess of 8 km (5 mi.) with tank loads above these limitations may result in premature wear, failure, or personnel injury. Exceeding these limitations may void manufactures warranty.

Tire Size Maximum Transport Load
320/90R46 Empty
380/90R46 1514 L (400 gal.)
420/80R46 1514 L (400 gal.)
20.8R38 1514 L (400 gal.)



1. Be sure SMV emblem is installed on boom (or rear of machine).

2. Start engine.

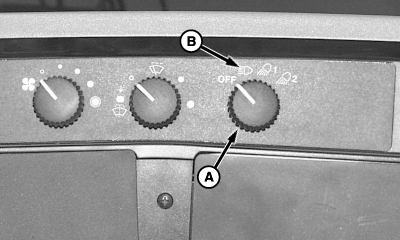

3. Turn light switch (A) to transport position (B) (as necessary). Check that amber warning lights are flashing and that all lights are clean and visible.

N67858


A-Light Switch
B-Transport Position

OUO6092,00006E0 -19-24SEP04-1/1
