Preparing Machine with 24.4 and 27.4 m (80 and 90 ft) Boom for Transport on Semi-Tractor Trailer

causym CAUTION: Suspension linkages can cause injury to you or others from movement when inflating or deflating air springs. Keep hands and body away from suspension linkage.

1. Empty solution tank and rinse tank.

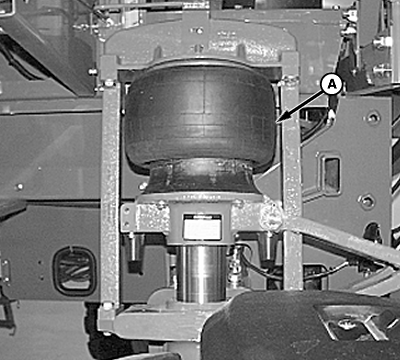

2. Deflate front and rear suspension air springs (A).

3. Set wheels at 3048 mm (120 in.) tread setting.


A-Suspension Air Springs

N53966

Rear Air Spring Shown

OUO6092,00006F7 -19-07OCT04-1/4

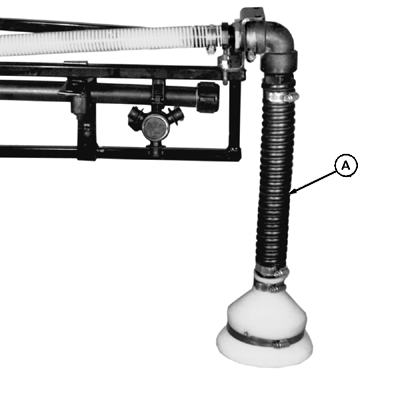

4. Remove foamer boot (A) (if equipped) at end of each boom.

5. Completely fold booms.


A-Foamer Boot

N42190EQ

OUO6092,00006F7 -19-07OCT04-2/4

IMPORTANT: Do NOT tie boom wings to transport trailer.

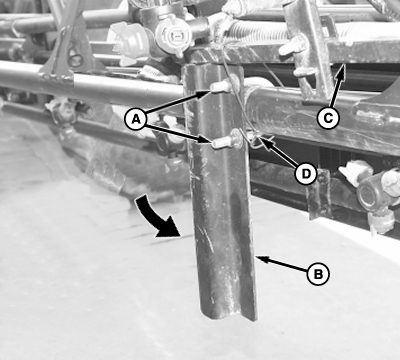

6. Loosen nuts (A) and pivot breakaway section pad (B) down to position shown. Tighten nuts.

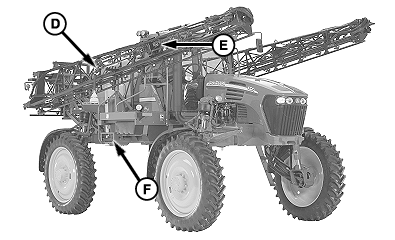

7. Position breakaway section (C) tight to inner section and tie at location (D).

8. Tie outer boom assembly to the intermediate boom section at location (E).

9. Raise ladder (F) on right-hand side of machine and tie band in transport position.


A-Nuts
B-Breakaway Section Pad
C-Breakaway Section
D- Tie Location
E- Tie Location
F-Ladder

N67864
N67865

OUO6092,00006F7 -19-07OCT04-3/4

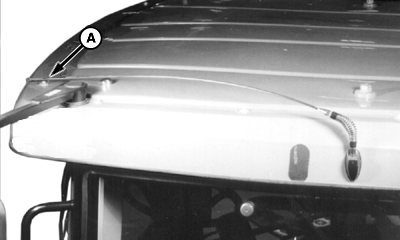

10. Fold cab corner mirror in and place antenna in retainer (A) on cab roof.

11. Drive machine onto trailer or truck.

12. Raise ladder on left-hand side of machine and carefully get down from machine.


A-Retainer

N67921

OUO6092,00006F7 -19-07OCT04-4/4
