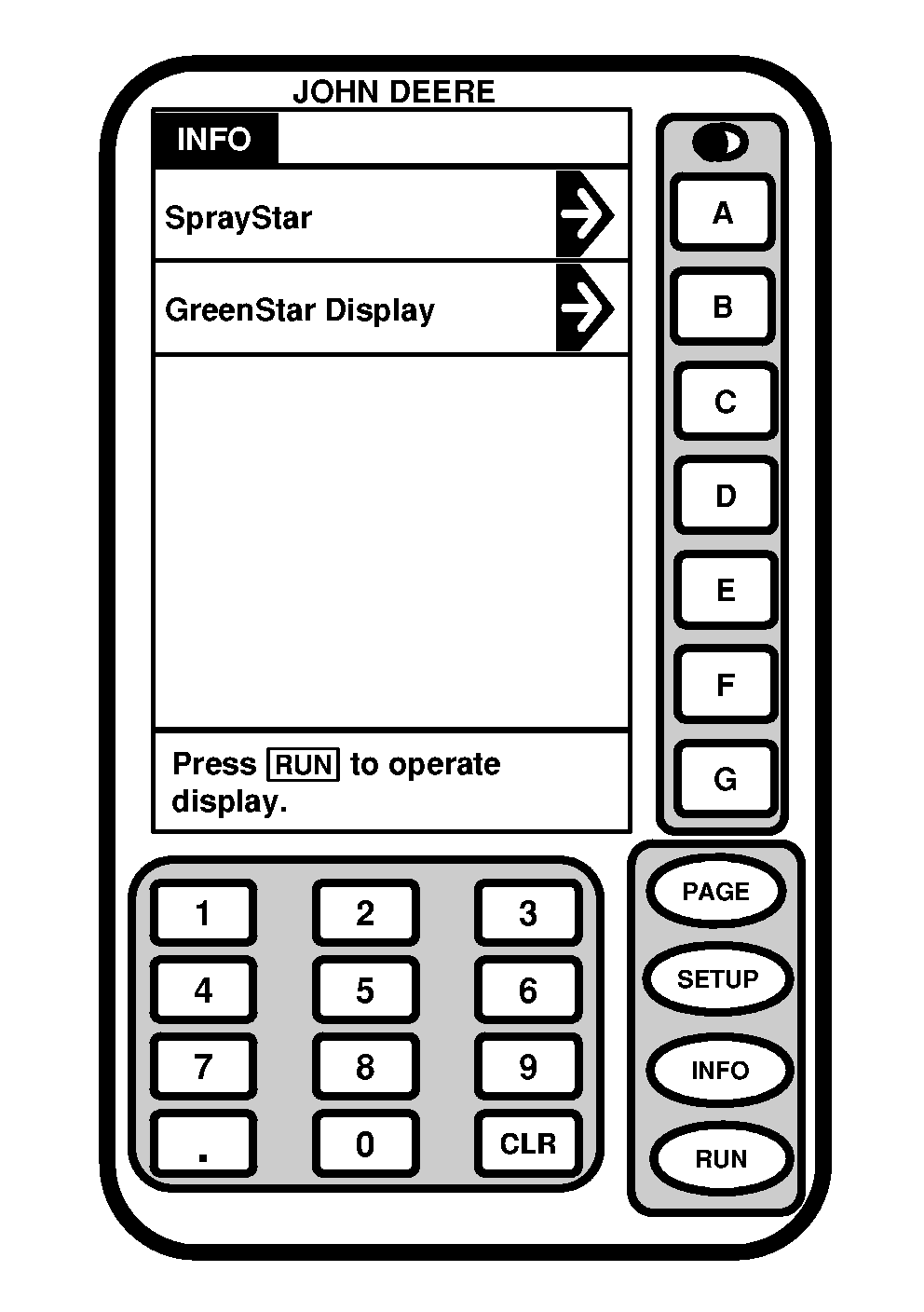

Information Menu

The information menu contains important information about the sprayer.

SPRAYSTAR- Used to find important information about the sprayer system. This information includes Service Interval Hour Counter, Job Summaries, Nozzle Flow Check, Sprayer Diagnostics, and Engine Diagnostics.

GREENSTAR Display- Used for information dealing with the GREENSTAR display only, including hardware serial numbers and software versions, recent problems, display diagnostics, watchdog trace, and CAN Bus Analyzer.

NOTE: Other items may appear on this screen. (See appropriate operators manual for setup and operating information of guidance systems and GREENSTAR systems.)

OUO6092,000070C -19-06OCT04-1/1
