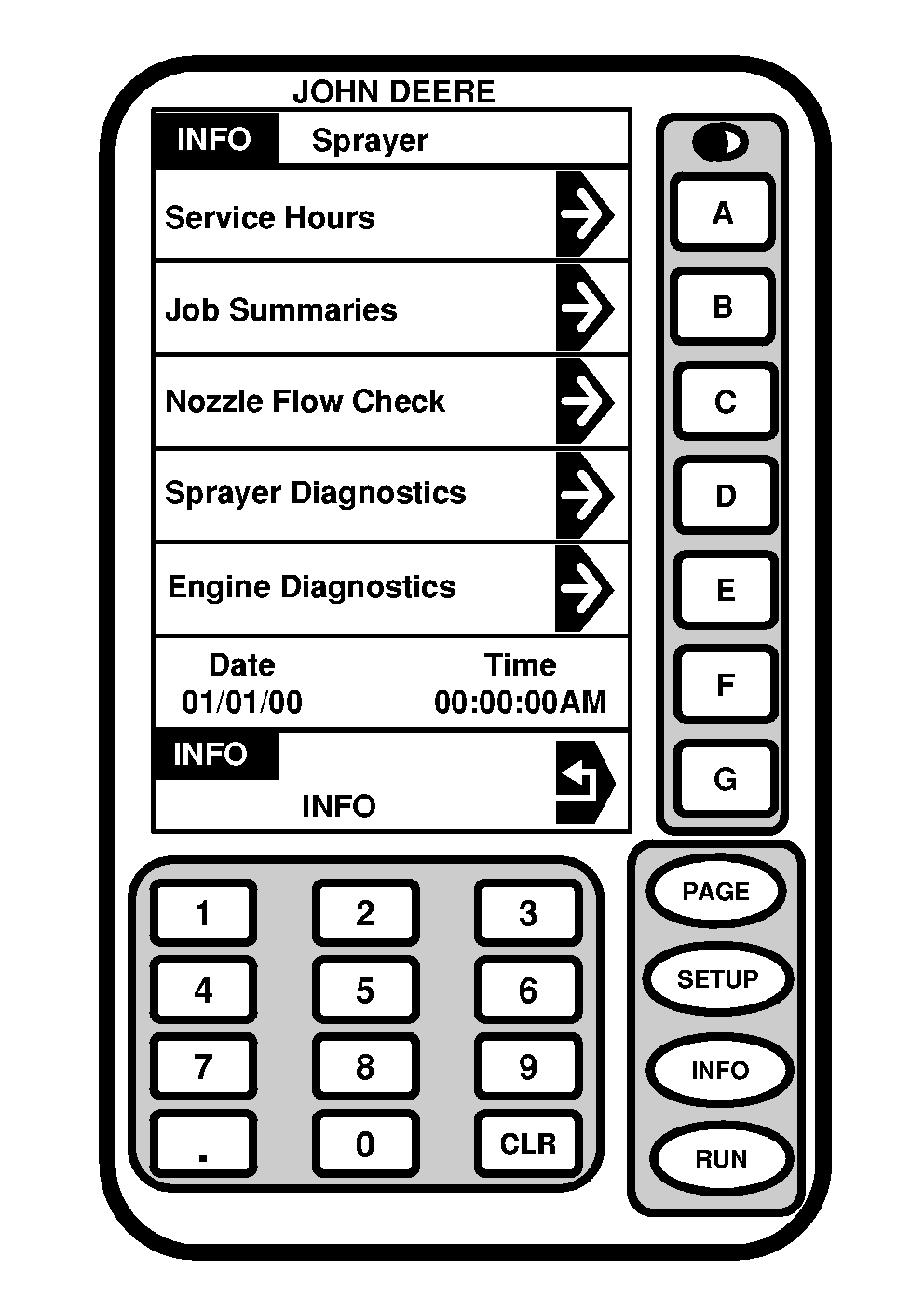

SPRAYSTAR InformationService Hours- Displays engine hours and allows service intervals to be reset. Job Summaries- Records of spraying jobs. Five spraying jobs or job summaries can be stored. These job summaries record the acres sprayed, volume applied, time it took to spray, acres per hour and volume per hour. Also includes an application summary. Nozzle Flow Check- Allows the operator to check the application rate, pressure, flow rate of boom at a given speed and target application rate. Sprayer Diagnostics- The sprayer diagnostic page displays the hardware number and serial number as well as software number used and it's serial number. The sprayer diagnostic page also allows the operator to access pages showing recent problems, sensor status, switch status and output status. Engine Diagnostics- The engine diagnostic page displays the hardware number and serial number as well as software number used and it's serial number. The vehicle diagnostic page also allows the operator to access pages showing recent problems and sensor status. Date and Time- The current date and time are shown. |
|
OUO6092,000070D -19-07OCT04-1/1 |
