Continuous Caution

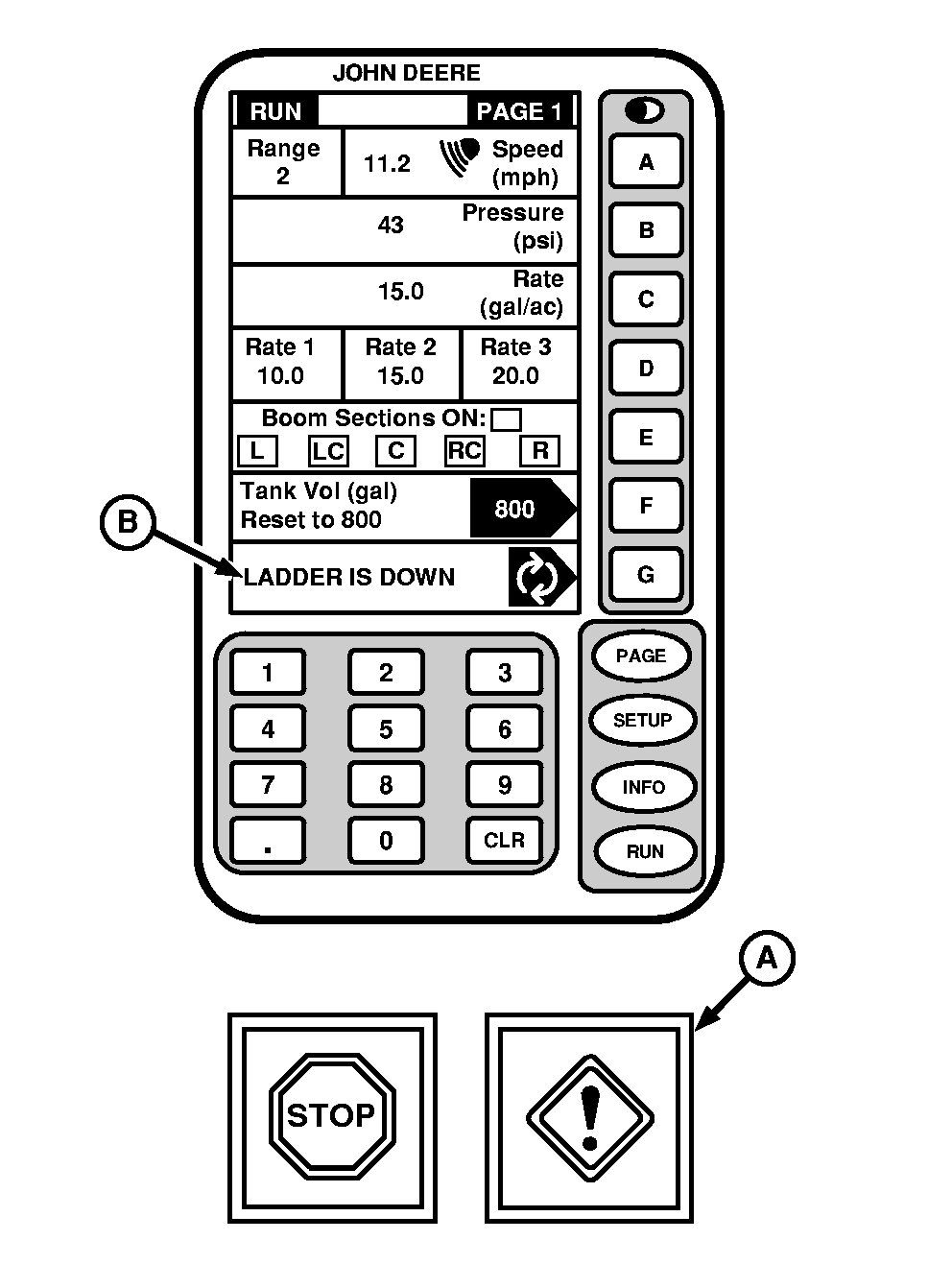

The caution lamp (A) lights on the right-hand console. A caution message (B) appears in the SPRAYSTAR display's "G" segment. The message remains visible as long as the condition persists.

An audible alarm is sounded when the continuous caution first appears.

Example: LADDER IS DOWN.

A-Caution Lamp
B-Caution Message

OUO6092,0000717 -19-11OCT04-1/2

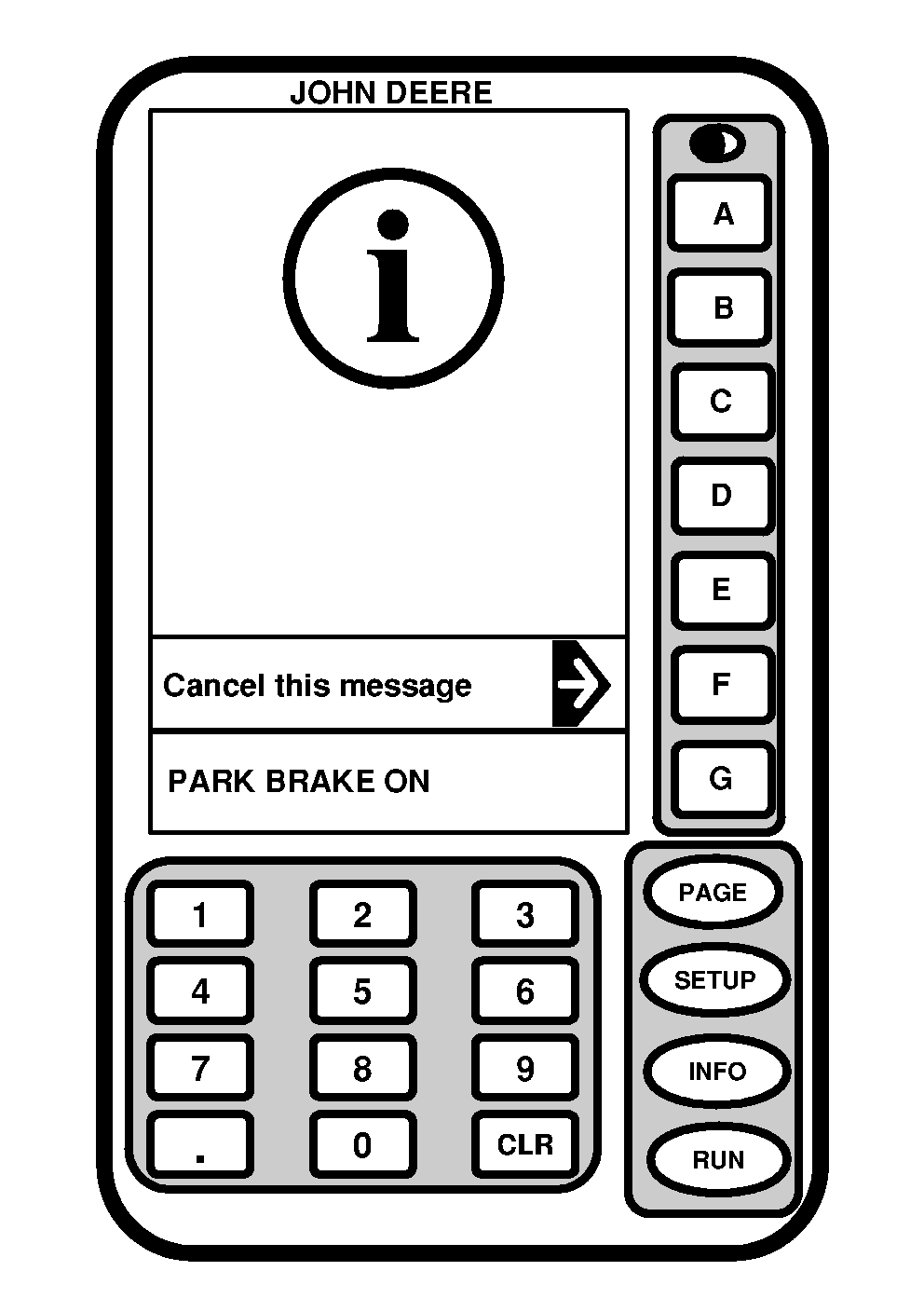

When in SETUP or INFO modes and a caution situation arises, a full-page caution will appear.

OUO6092,0000717 -19-11OCT04-2/2
